kubernetes集群搭建Zabbix監控平臺的詳細過程

瀏覽：428日期：2023-04-06 15:09:23

一、zabbix介紹

1.zabbix簡介

Zabbix是一個基于Web界面的分布式系統監控的企業級開源軟件?？梢员O(jiān)視各種系統與設備的參數，保障服務器及設備的安全運營。

2.zabbix特點

（1）安裝與配置簡單。
（2）可視化web管理界面。
（3）免費開源。
（4）支持中文。
（5）自動發現。
（6）分布式監控。
（7）實時繪圖。

3.zabbix的主要功能

1.硬件監控。如交換機、路由器、打印機等。
2.系統監控。如CPU,內存，磁盤。硬盤IO，系統負載等。
3.服務監控。如apache,nginx,tomcat,redis,TCP連接數等。
4.性能監控。如網站性能，服務器性能，數據庫性能。
5.日志監控。如訪問日志，錯誤日志。
6.安全監控。如用戶登錄數，本地文件改動，passwd文件變化。
7.網絡監控。如端口，SMTP,網絡使用率，網絡入流量，網絡出流量。

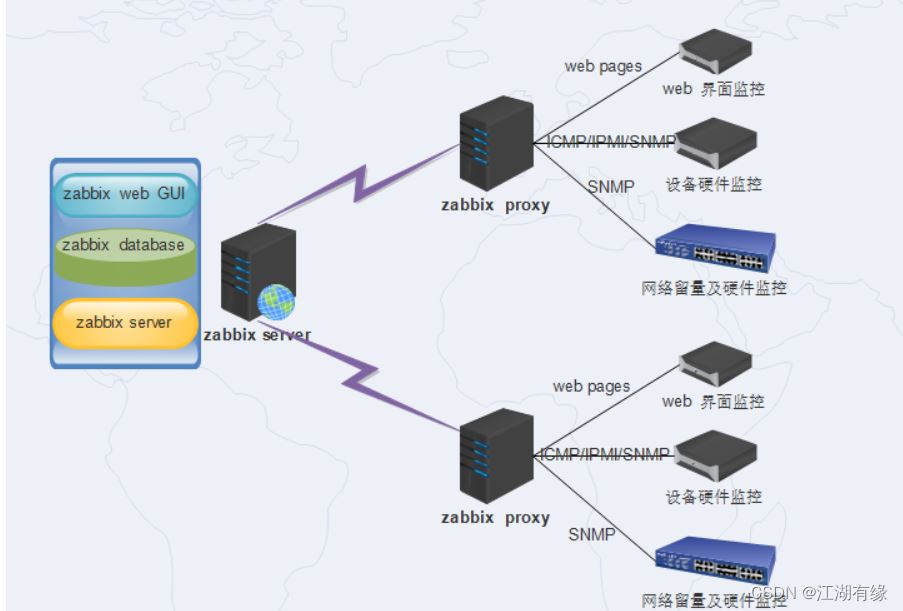

4.zabbix架構圖

二、檢查本地k8s環境

1.檢查系統pod運行狀態

[root@k8s-master ~]# kubectl get pods -ANAMESPACE     NAME       READY   STATUS    RESTARTSAGEkube-system   calico-kube-controllers-7bc6547ffb-2nf66   1/1     Running   1 (9m28s ago)   2d16hkube-system   calico-node-8c4pn  1/1     Running   1 (9m16s ago)   2d16hkube-system   calico-node-f28qq  1/1     Running   1 (9m10s ago)   2d16hkube-system   calico-node-wmc2j  1/1     Running   1 (9m29s ago)   2d16hkube-system   coredns-6d8c4cb4d-6gm4x    1/1     Running   1 (9m28s ago)   2d16hkube-system   coredns-6d8c4cb4d-7vxlz    1/1     Running   1 (9m29s ago)   2d16hkube-system   etcd-k8s-master    1/1     Running   1 (9m30s ago)   2d16hkube-system   kube-apiserver-k8s-master  1/1     Running   1 (9m29s ago)   2d16hkube-system   kube-controller-manager-k8s-master 1/1     Running   1 (9m30s ago)   2d16hkube-system   kube-proxy-8dfw8   1/1     Running   1 (9m29s ago)   2d16hkube-system   kube-proxy-ghzrv   1/1     Running   1 (9m9s ago)    2d16hkube-system   kube-proxy-j867z   1/1     Running   1 (9m15s ago)   2d16hkube-system   kube-scheduler-k8s-master  1/1     Running   1 (9m28s ago)   2d16h

2.檢查node節點狀態

[root@k8s-master ~]# kubectl get nodes -owideNAME STATUS   ROLES  AGE     VERSION   INTERNAL-IP     EXTERNAL-IP   OS-IMAGEKERNEL-VERSION  CONTAINER-RUNTIMEk8s-master   Ready    control-plane,master   2d16h   v1.23.1   192.168.3.201   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6k8s-node01   Ready    <none> 2d16h   v1.23.1   192.168.3.202   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6k8s-node02   Ready    <none> 2d16h   v1.23.1   192.168.3.203   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6

三、配置nfs共享存儲

1.安裝nfs

 yum install -y nfs-utils

2.創建共享目錄

mkdir -p /nfs/data

3.配置共享目錄

echo "/nfs/data/ *(insecure,rw,sync,no_root_squash)" > /etc/exports

4.啟動相關服務

systemctl enable rpcbindsystemctl enable nfs-serversystemctl start rpcbind

5.使配置生效

exportfs -r

6.查看nfs

[root@k8s-master ~]# exportfs/nfs/data     	<world>

7.其他節點檢查nfs共享

[root@k8s-node01 ~]#  showmount -e 192.168.3.201Export list for 192.168.3.201:/nfs/data *

四、安裝zabbix-mysql

1.編寫zabbix-mysql的yaml文件

[root@k8s-master zabbix]# cat zabbix_mysql.yaml ---apiVersion: v1kind: PersistentVolumemetadata:  name: zabbixdb-pvspec:  capacity:   #創建存儲的大小    storage: 10Gi  volumeMode: Filesystem  #存儲的類型  accessModes:    - ReadWriteOnce  persistentVolumeReclaimPolicy: Recycle  nfs:    path: /nfs/data/zabbix    server: 192.168.3.201  mountOptions:    - hard    - nfsvers=4.1---apiVersion: v1kind: PersistentVolumeClaimmetadata:  name: zabbixdb-pvc  namespace: zabbixspec:  accessModes:    - ReadWriteOnce  volumeMode: Filesystem   #存儲類型 ，塊存儲Block  resources:    requests:      storage: 8Gi---apiVersion: apps/v1kind: Deploymentmetadata:  labels:    app: zabbixdb  name: zabbixdb  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbixdb  strategy: {}  template:    metadata:      labels:app: zabbixdb    spec:      volumes:      - name: zabbixdb-datapersistentVolumeClaim:  claimName: zabbixdb-pvc      containers:      - image: mysql:8.0name: mysqlports:- name: mysql  containerPort: 3306  protocol: TCPvolumeMounts:- name: zabbixdb-data  mountPath: /var/lib/mysqlenv:- name: MYSQL_DATABASE  value: "zabbix"- name: MYSQL_USER  value: "zabbix"- name: MYSQL_PASSWORD  value: "zabbix"- name: MYSQL_ROOT_PASSWORD  value: "zabbix"resources:   requests:     cpu: 0.1     memory: 128Mi  limits:     cpu: 0.3     memory:  512Mi---  apiVersion: v1kind: Servicemetadata:  creationTimestamp: null  labels:    app: zabbixdb  name: zabbixdb  namespace: zabbixspec:  clusterIP: 10.96.1.99  ports:  - name: 3306-3306    port: 3306    protocol: TCP    targetPort: 3306  selector:    app: zabbixdb  type: ClusterIPstatus:  loadBalancer: {}

2.創建命名空間

[root@k8s-master zabbix]# kubectl create namespace zabbixnamespace/zabbix created

3.創建zabbix數據庫

kubectl apply -f zabbix_mysql.yaml

4.檢查pod狀態

[root@k8s-master zabbix]# kubectl get pods -n zabbix NAMEREADY   STATUS    RESTARTS   AGEzabbixdb-69b7cd8dff-jnpjd   1/1     Running   0  11m

五、檢查zabbix數據庫的service域名

1.運行測試pod

[root@k8s-master ~]# kubectl run busybox --image=busybox:1.28 -- sleep 3600pod/busybox created

2.進入busybox的pod

[root@k8s-master ~]# kubectl exec -it busybox -- /bin/sh/ #

3.查看域名解析

[root@k8s-master ~]# kubectl exec -it busybox -- /bin/sh/ # nslookup zabbixdb.zabbix.svc.cluster.localServer:    10.96.0.10Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.localName:      zabbixdb.zabbix.svc.cluster.localAddress 1: 10.96.1.99 zabbixdb.zabbix.svc.cluster.local/ #

六、安裝zabbix-server

1.編寫zabbix_server.yaml文件

[root@k8s-master zabbix]# cat zabbix_server.yaml apiVersion: apps/v1kind: Deploymentmetadata:  creationTimestamp: null  labels:    app: zabbix-server  name: zabbix-server  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbix-server  strategy: {}  template:    metadata:      creationTimestamp: null      labels:app: zabbix-server    spec:      volumes:      - name: zabbix-scriptshostPath:  path: /usr/lib/zabbix/      - name: zabbix-filehostPath:  path: /var/lib/zabbix       nodeSelector:zabbix-server: "true"      hostNetwork: true      containers:      - image: zabbix/zabbix-server-mysql:6.0-ubuntu-latestname: zabbix-server-mysqlenv:- name: DB_SERVER_HOST  value:  10.96.1.99- name: MYSQL_USER  value: zabbix- name: MYSQL_PASSWORD  value: zabbixresources: {}status: {}

2.給node02節點打上標簽

[root@k8s-master zabbix]# kubectl label nodes k8s-node02  zabbix-server=truenode/k8s-node02 labeled

3.安裝zabbix-server

[root@k8s-master zabbix]# kubectl apply -f zabbix_server.yaml deployment.apps/zabbix-server created

4.檢查pod狀態

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  66szabbixdb-69b7cd8dff-krt2w1/1     Running   0  4m22s

七、部署zabbix-web

1.編寫zabbix_web.yaml文件

[root@k8s-master zabbix]# cat zabbix_web.yaml apiVersion: apps/v1kind: Deploymentmetadata:  creationTimestamp: null  labels:    app: zabbix-web  name: zabbix-web  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbix-web  strategy: {}  template:    metadata:      creationTimestamp: null      labels:app: zabbix-web    spec:      containers:      - image: zabbix/zabbix-web-nginx-mysql:6.0-ubuntu-latestname: zabbix-web-nginx-mysqlenv:- name: DB_SERVER_HOST  value: zabbixdb.zabbix.svc.cluster.local- name: MYSQL_USER  value: zabbix- name: MYSQL_PASSWORD  value: zabbix- name: ZBX_SERVER_HOST  value: 192.168.3.201- name: PHP_TZ  value: Asia/shanghairesources: {}status: {}---apiVersion: v1kind: Servicemetadata:  creationTimestamp: null  labels:    app: zabbix-web  name: zabbix-web  namespace: zabbixspec:  ports:  - name: 8080-8080    port: 8080    protocol: TCP    targetPort: 8080  selector:    app: zabbix-web  type: NodePortstatus:  loadBalancer: {}

2.安裝zabbix-web

[root@k8s-master zabbix]# kubectl apply -f zabbix_web.yaml deployment.apps/zabbix-web createdservice/zabbix-web created

3.查看pod狀態

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  2m36szabbix-web-55cd66f74f-9f284      1/1     Running   0  18szabbixdb-69b7cd8dff-krt2w1/1     Running   0  5m52s

八、部署zabbix-agent

1.編輯zabbix_agent.yaml

[root@k8s-master zabbix]# cat zabbix_agent.yaml apiVersion: apps/v1kind: DaemonSetmetadata:  labels:    app: zabbix-agent  name: zabbix-agent  namespace: zabbixspec:  selector:    matchLabels:      app: zabbix-agent  template:    metadata:      creationTimestamp: null      labels:app: zabbix-agent    spec:      hostNetwork: true      containers:      - image: zabbix/zabbix-agent:6.0-ubuntu-latestname: zabbix-agentenv:- name: ZBX_SERVER_HOST  value: 192.168.3.201resources: {}

2.安裝zabbix-agent

 kubectl apply -f zabbix_agent.yaml

3.查看pod狀態

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-agent-h2qwf       1/1     Running   0  3szabbix-agent-plnbd       1/1     Running   0  3szabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  3m2szabbix-web-55cd66f74f-9f284      1/1     Running   0  44szabbixdb-69b7cd8dff-krt2w1/1     Running   0  6m18s

九、訪問zabbix的web

1.查看svc

[root@k8s-master zabbix]#  kubectl get svc -n zabbix NAME TYPECLUSTER-IP    EXTERNAL-IP   PORT(S)  AGEzabbix-web   NodePort    10.100.50.7   <none>8080:30775/TCP   59szabbixdb     ClusterIP   10.96.1.99    <none>3306/TCP 6m33s

2.登錄web

http://192.168.3.202:30775

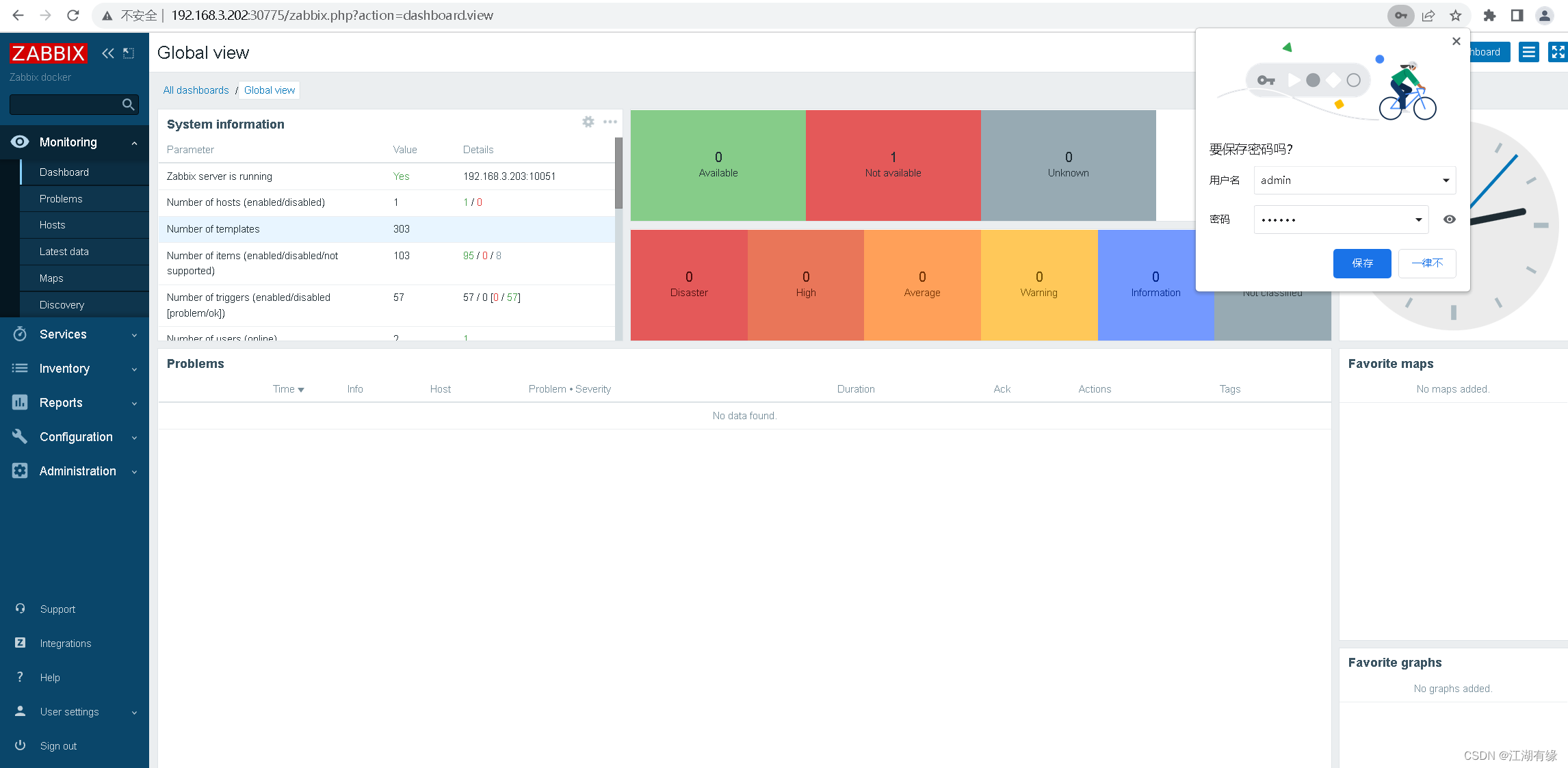

3.登錄zabbix

初始賬號admin/zabbix

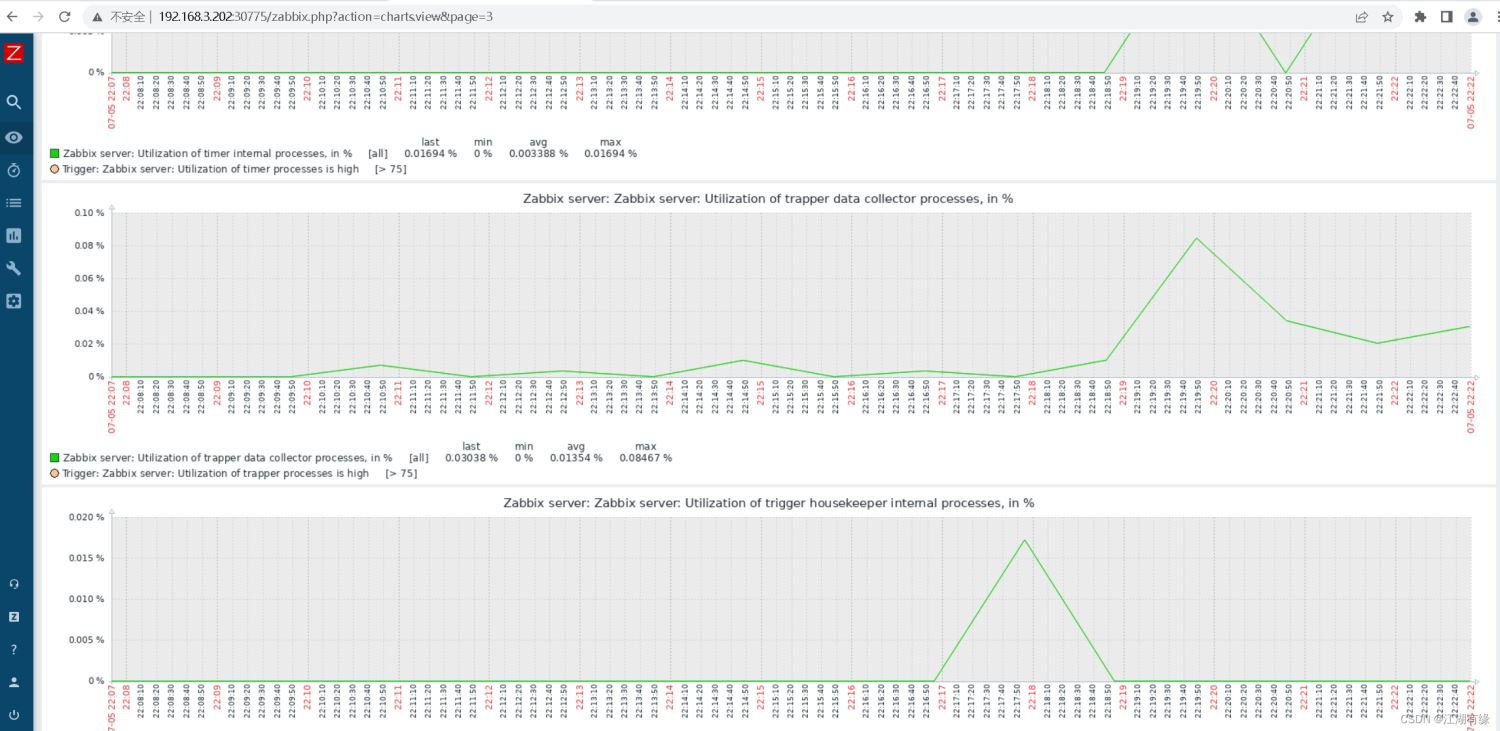

4.查詢zabbix-server的監控項圖表

到此這篇關于kubernetes集群搭建Zabbix監控平臺的文章就介紹到這了,更多相關kubernetes集群搭建Zabbix監控內容請搜索以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持！
