目錄

• tomcat簡介
• 安裝tomcat

tomcat簡介

Tomcat是Apache 軟件基金會（Apache Software Foundation）的Jakarta 項目中的一個核心項目，由Apache、Sun 和其他一些公司及個人共同開發而成。由于有了Sun 的參與和支持，最新的Servlet 和JSP 規范總是能在Tomcat 中得到體現，Tomcat 5支持最新的Servlet 2.4 和JSP 2.0 規范。因為Tomcat 技術先進、性能穩定，而且免費，因而深受Java 愛好者的喜愛并得到了部分軟件開發商的認可，成為目前比較流行的Web 應用服務器。
Tomcat 服務器是一個免費的開放源代碼的Web 應用服務器，屬于輕量級應用服務器，在中小型系統和并發訪問用戶不是很多的場合下被普遍使用，是開發和調試JSP 程序的首選。對于一個初學者來說，可以這樣認為，當在一臺機器上配置好Apache 服務器，可利用它響應HTML（標準通用標記語言下的一個應用）頁面的訪問請求。實際上Tomcat是Apache 服務器的擴展，但運行時它是獨立運行的，所以當你運行tomcat 時，它實際上作為一個與Apache 獨立的進程單獨運行的。
訣竅是，當配置正確時，Apache 為HTML頁面服務，而Tomcat 實際上運行JSP 頁面和Servlet。另外，Tomcat和IIS等Web服務器一樣，具有處理HTML頁面的功能，另外它還是一個Servlet和JSP容器，獨立的Servlet容器是Tomcat的默認模式。不過，Tomcat處理靜態HTML的能力不如Apache服務器。目前Tomcat最新版本為9.0。

tomcat就是傳說中的中間件之一，tomcat本身是一個容器，專門用來運行java程序，java語言開發的網頁.jsp就應該運行于tomcat中。而tomcat本身的運行也依賴于jdk環境。

安裝tomcat

//安裝依賴包[root@localhost ~]# yum -y install java-11-openjdk-devel java-11-openjdk

//解壓安裝包[root@localhost ~]# tar xf apache-tomcat-9.0.46.tar.gz[root@localhost ~]# lsanaconda-ks.cfg  apache-tomcat-9.0.46  apache-tomcat-9.0.46.tar.gz  scripts//移動到/usr/local/tomcat下[root@localhost ~]# mv apache-tomcat-9.0.46 /usr/local/tomcat

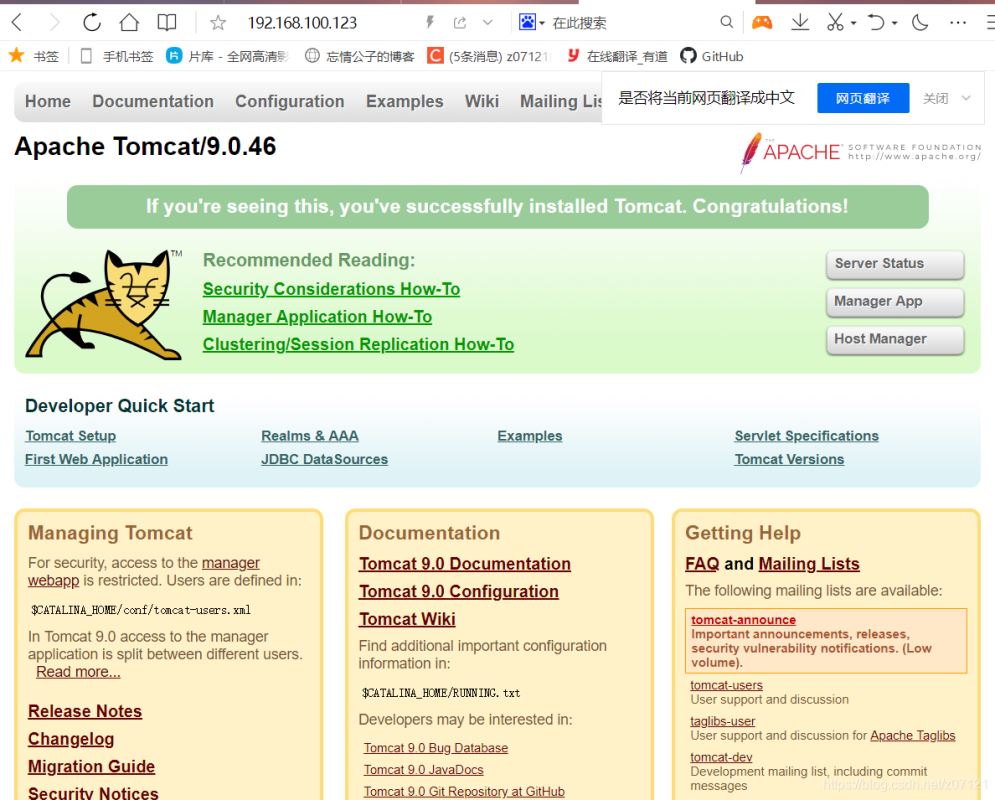

//啟動tomcat[root@localhost tomcat]# /usr/local/tomcat/bin/startup.sh Using CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100   *:8080  *:*

[root@localhost tomcat]# vim /conf/server.xml//把注釋取消  <!-- Define an AJP 1.3 Connector on port 8009 -->    <Connector protocol="AJP/1.3"       address="::1"       port="8009"       redirectPort="8443" />

[root@localhost tomcat]# ./bin/catalina.sh stopUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   NOTE: Picked up JDK_JAVA_OPTIONS:  --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q Local Address:Port Peer Address:Port    Process    LISTEN    0 128  0.0.0.0:220.0.0.0:*  LISTEN    0 128     [::]:22   [::]:*  [root@localhost tomcat]# ./bin/catalina.sh startUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100       [::1]:8009       [::]:* LISTEN    0 100   *:8080  *:*

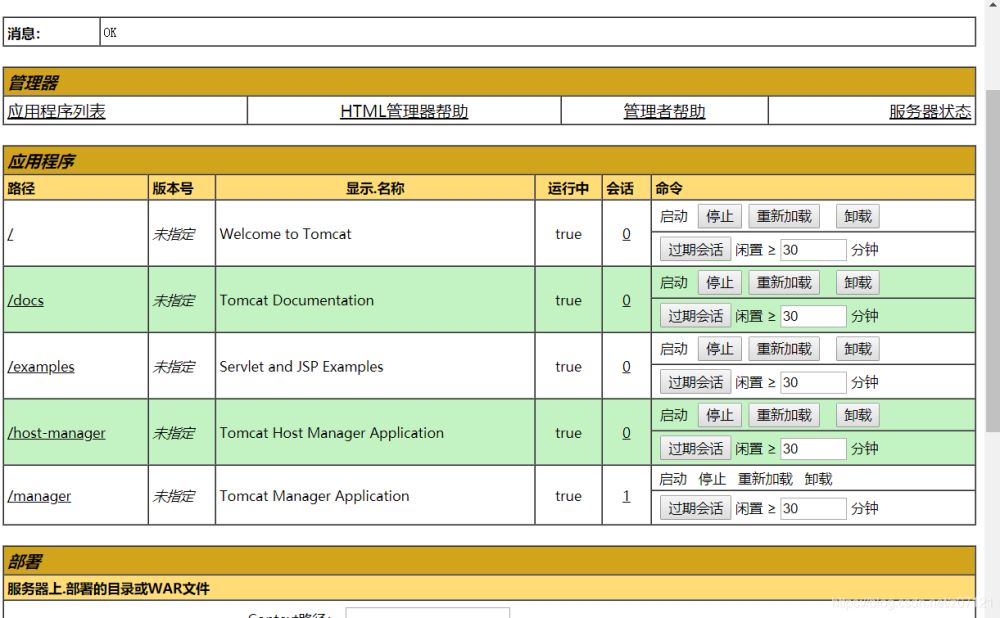

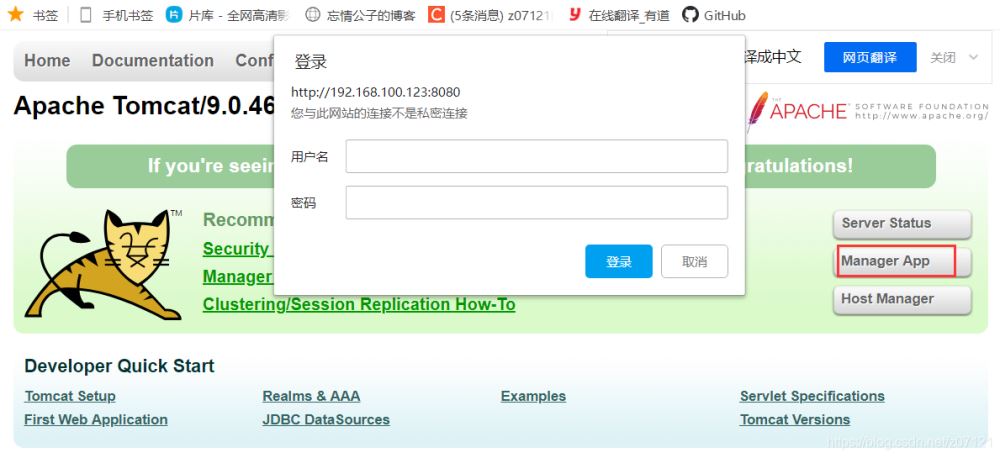

配置管理界面Manager App

[root@localhost conf]# vim tomcat-users.xml//把下列兩行加到這個配置文件的倒數第二行<role rolename="manager-gui"/><user username="tomcat" password="s3cret" roles="manager-gui"/>[root@localhost tomcat]# lsbin   conf     lib      logs    README.md      RUNNING.txt  webappsBUILDING.txt  CONTRIBUTING.md  LICENSE  NOTICE  RELEASE-NOTES  temp work[root@localhost tomcat]# cd webapps/[root@localhost webapps]# lsdocs  examples  host-manager  manager  ROOT[root@localhost webapps]# cd manager/[root@localhost manager]# lscss  images  index.jsp  META-INF  status.xsd  WEB-INF  xform.xsl[root@localhost manager]# cd META-INF/[root@localhost META-INF]# lscontext.xml[root@localhost META-INF]# vim context.xml allow="192\.168\.100\.\d+|127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />在這個文件中加入要訪問的ip網段。

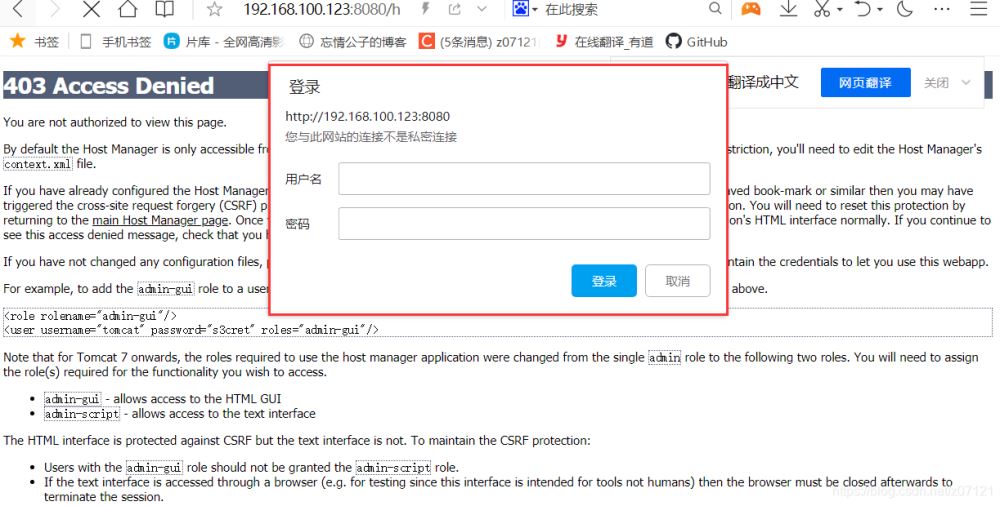

配置Host Manager

[root@localhost conf]# lsCatalina     context.xml   logging.properties  tomcat-users.xsdcatalina.policy      jaspic-providers.xml  server.xml  web.xmlcatalina.properties  jaspic-providers.xsd  tomcat-users.xml[root@localhost conf]# vim tomcat-users.xml <role rolename="manager-gui"/><role rolename="admin-gui"/>   //在配置文件中加入此行<user username="zdj" password="123456" roles="manager-gui,admin-gui"/>   //加入admin-gui因為修改了配置文件，，這里需要重啟[root@localhost tomcat]# ./bin/catalina.sh stopUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   NOTE: Picked up JDK_JAVA_OPTIONS:  --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED[root@localhost tomcat]# ./bin/catalina.sh startUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100       [::1]:8009       [::]:* LISTEN    0 100   *:8080  *:*

[root@localhost tomcat]# cd webapps/host-manager/META-INF/[root@localhost META-INF]# lscontext.xml[root@localhost META-INF]# vim context.xml allow="192\.168\.100\.\d+|127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />//在這個文件中加入要訪問的網段

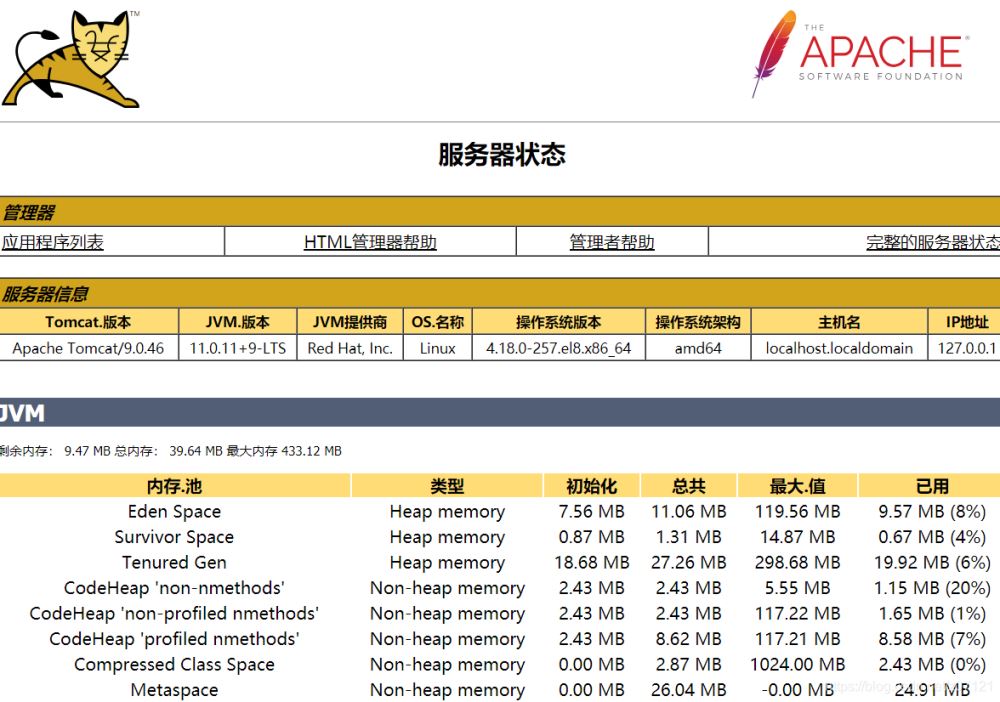

查看一下服務器狀態

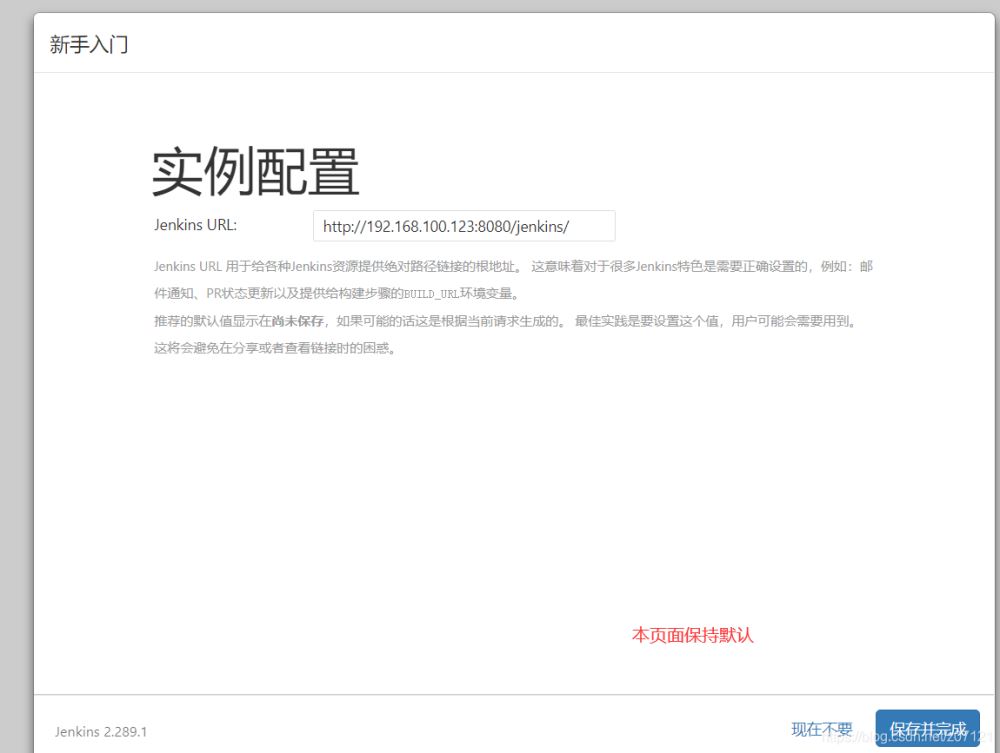

添加jenkins服務

[root@localhost ~]# lsanaconda-ks.cfg  jenkins.war  scripts[root@localhost ~]# cp jenkins.war /usr/local/tomcat/webapps/[root@localhost ~]# cd /usr/local/tomcat/webapps/[root@localhost webapps]# lsdocs  examples  host-manager  jenkins  jenkins.war  manager  ROOT

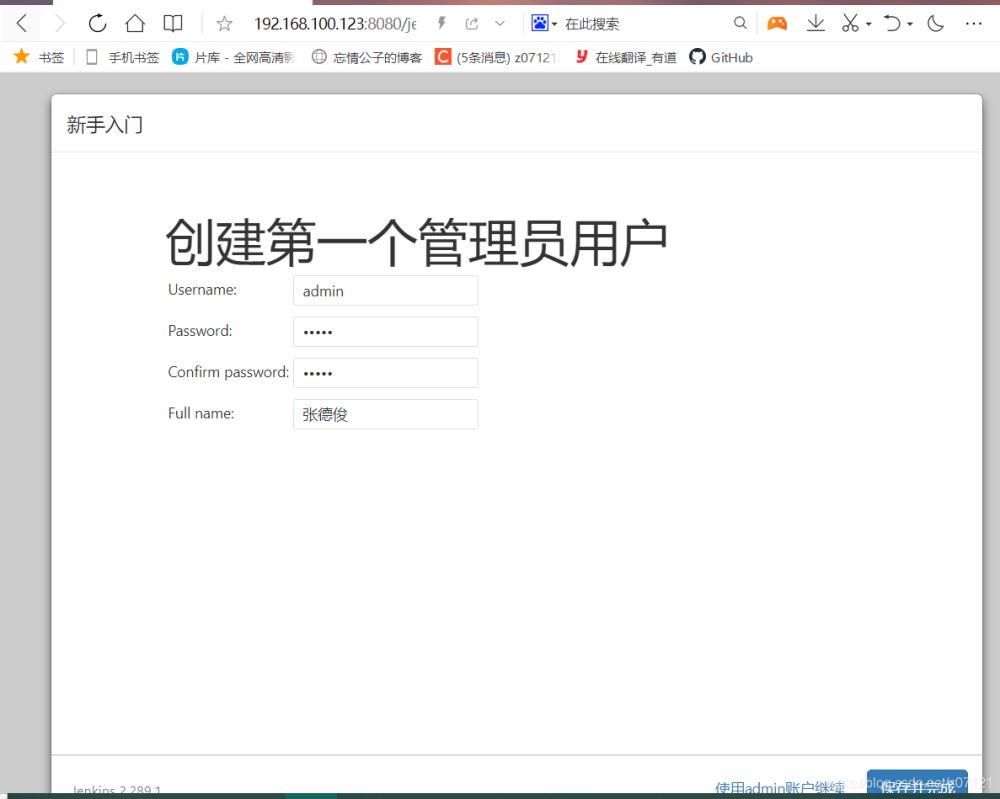

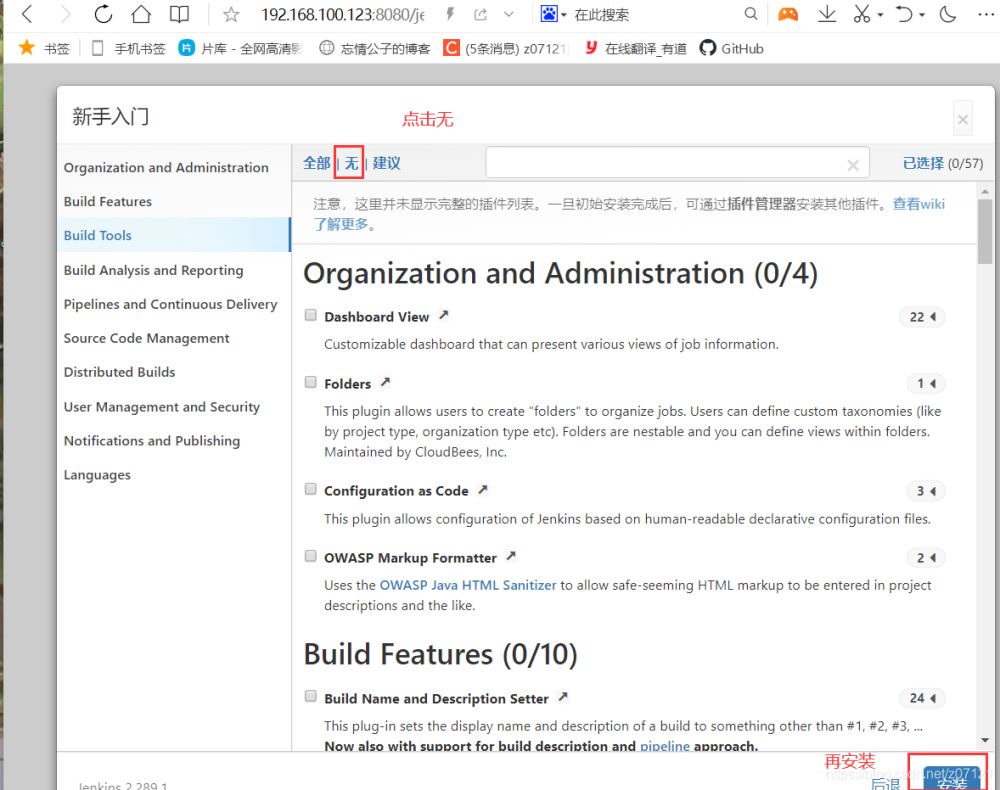

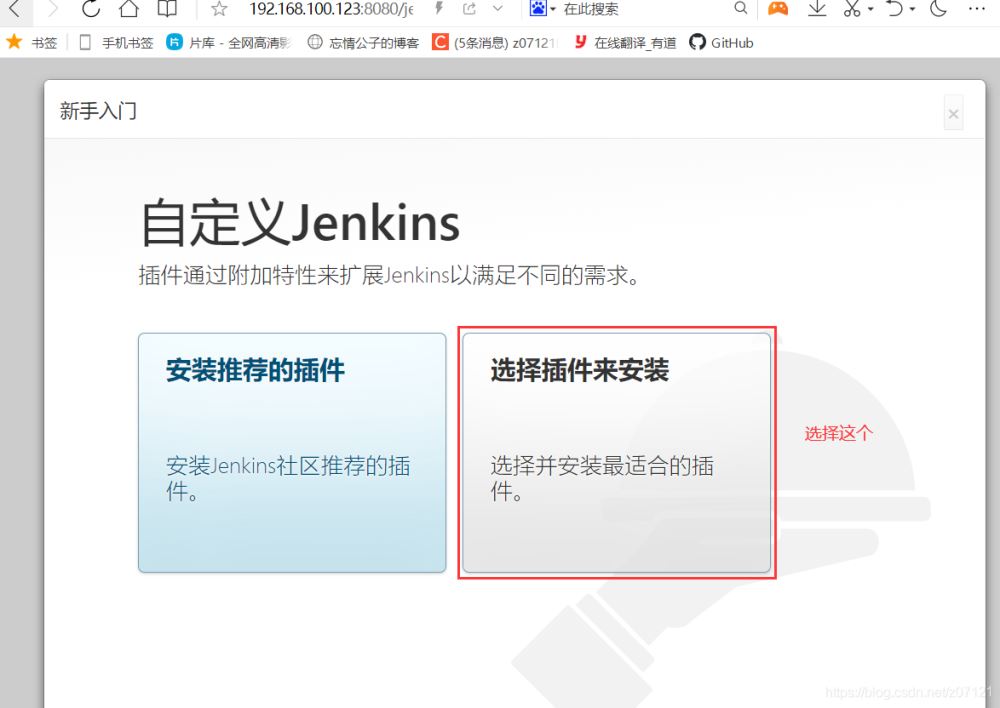

查看密碼[root@localhost webapps]# cat /root/.jenkins/secrets/initialAdminPasswordf9770e45cc67460586e22f049b96e91d

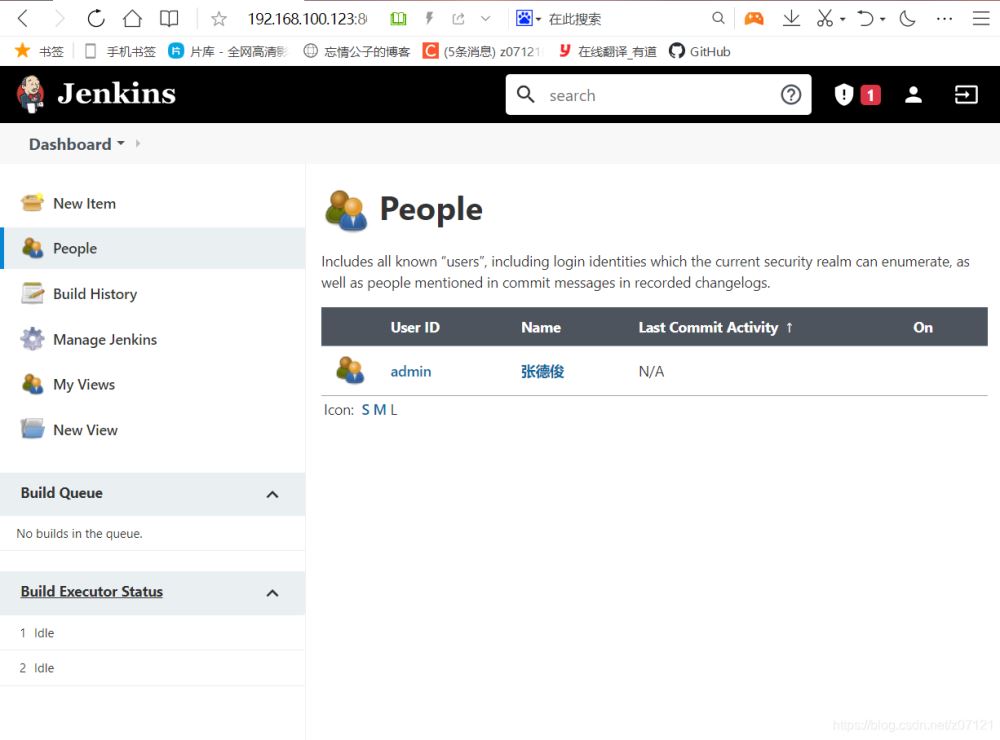

配置完成。
