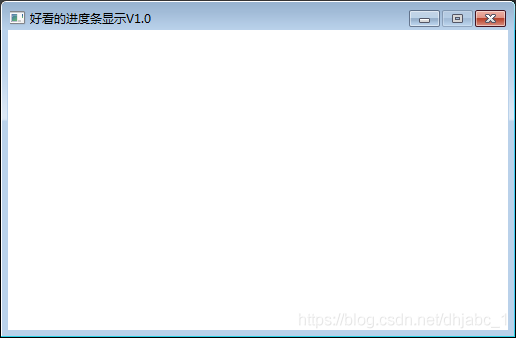

目錄一、初始化主界面二、第一種進度條三、第二種進度條四、第三種進度條五、第四種進度條六、綜合案例一、初始化主界面

import pygamepygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) clock.tick(30) pygame.display.flip()

二、第一種進度條

（一）核心代碼

pygame.draw.rect(screen,(192,192,192),(5,100,490,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step,20))

（二）設置步長，并循環遞增

step += 1

（三）完整代碼

import pygame,syspygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()step = 0while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) # screen.fill((0,0,0)) pygame.draw.rect(screen,(192,192,192),(5,100,490,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % 490,20)) step += 1 clock.tick(60) pygame.display.flip()

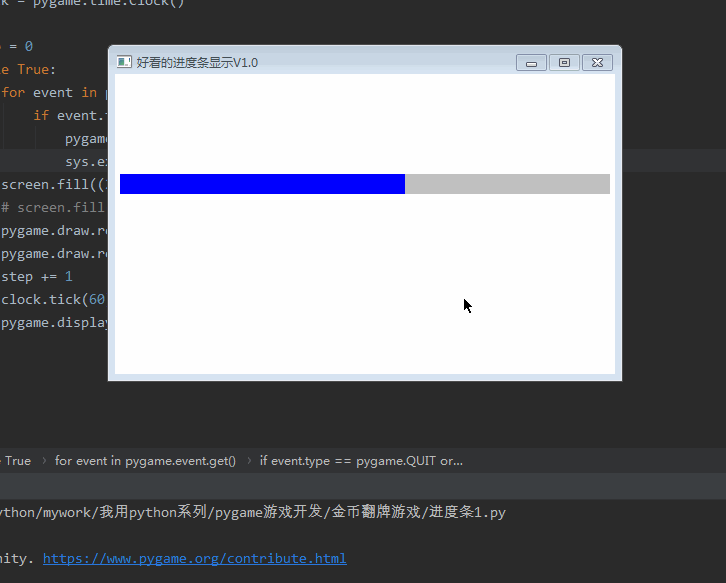

（四）運行效果

三、第二種進度條

（一）核心代碼

pygame.draw.rect(screen,(192,192,192),(5,100,490,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % 490,20)) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % 490)/490*100)), True, (255,0,0)) screen.blit(text1, (245, 100))

（二）完整代碼

import pygame,syspygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()step = 0while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) # screen.fill((0,0,0)) pygame.draw.rect(screen,(192,192,192),(5,100,490,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % 490,20)) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % 490)/490*100)), True, (255,0,0)) screen.blit(text1, (245, 100)) step += 1 clock.tick(60) pygame.display.flip()

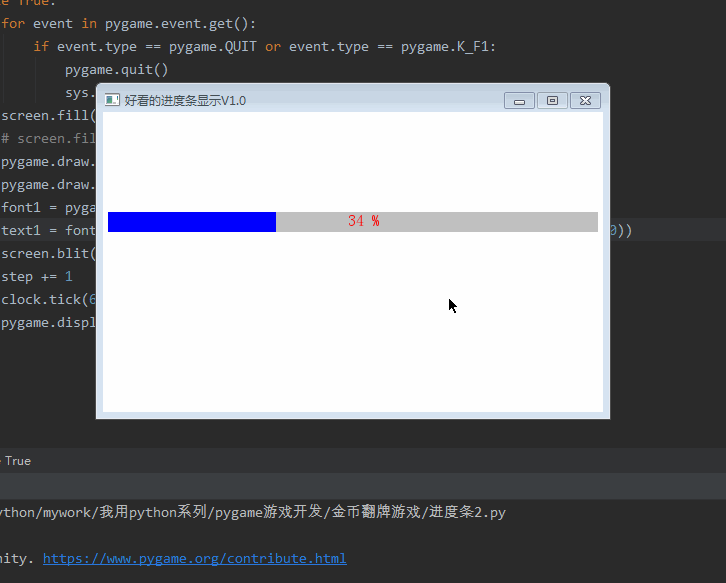

（三）運行結果

四、第三種進度條

（一）核心代碼

pygame.draw.rect(screen,(192,192,192),(5,100,length+10,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % length,20)) pygame.draw.circle(screen,(0,0,255),(step % length,110),10) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 100))

（二）完整代碼

import pygame,syspygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()step = 0length = 480while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) # screen.fill((0,0,0)) pygame.draw.rect(screen,(192,192,192),(5,100,length+10,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % length,20)) pygame.draw.circle(screen,(0,0,255),(step % length,110),10) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 100)) step += 1 clock.tick(60) pygame.display.flip()

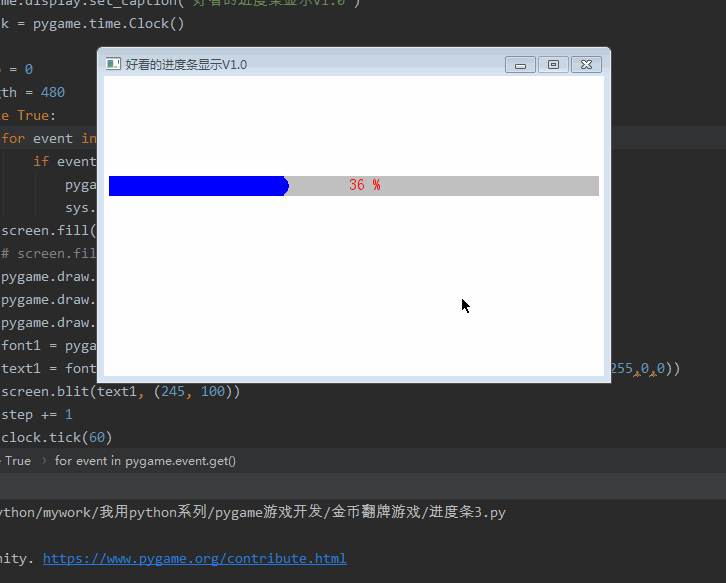

（三）運行效果

五、第四種進度條

（一）加載圖片資源

picture = pygame.transform.scale(pygame.image.load(’score/5.png’), (20, 20))

（二）畫進度條

pygame.draw.rect(screen,(192,192,192),(5,100,length+10,20)) pygame.draw.rect(screen,(251,174,63),(5,100,step % length,20))

（三）畫圖片資源

screen.blit(picture,(step%length,100))

（四）畫文字

font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 100))

（五）完整代碼

import pygame,syspygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()picture = pygame.transform.scale(pygame.image.load(’score/5.png’), (20, 20))step = 0length = 480while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) # screen.fill((0,0,0)) pygame.draw.rect(screen,(192,192,192),(5,100,length+10,20)) pygame.draw.rect(screen,(251,174,63),(5,100,step % length,20)) screen.blit(picture,(step%length,100)) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 100)) step += 1 clock.tick(60) pygame.display.flip()

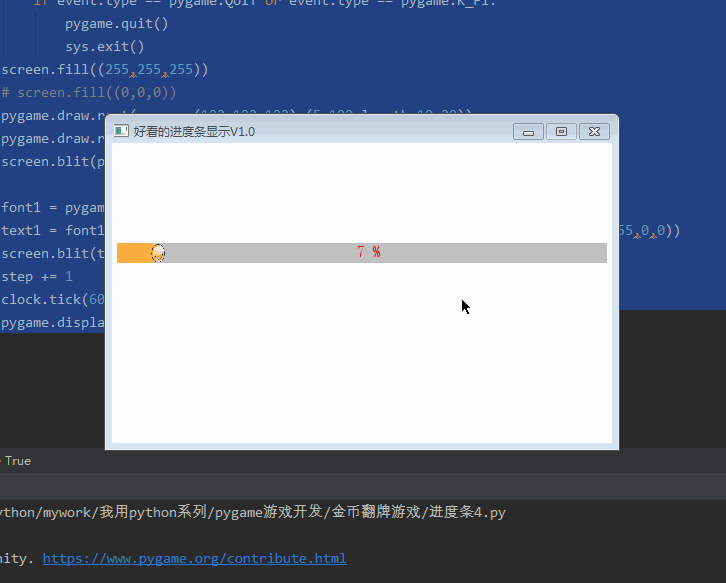

（六）運行效果

六、綜合案例

（一）完整代碼

import pygame,syspygame.init()screen = pygame.display.set_mode((500,300))pygame.display.set_caption('好看的進度條顯示V1.0')clock = pygame.time.Clock()picture = pygame.transform.scale(pygame.image.load(’score/5.png’), (20, 20))step = 0length = 480while True: for event in pygame.event.get():if event.type == pygame.QUIT or event.type == pygame.K_F1: pygame.quit() sys.exit() screen.fill((255,255,255)) # screen.fill((0,0,0)) # 第一種 pygame.draw.rect(screen,(192,192,192),(5,100,490,20)) pygame.draw.rect(screen,(0,0,255),(5,100,step % 490,20)) # 第二種 pygame.draw.rect(screen,(192,192,192),(5,150,490,20)) pygame.draw.rect(screen,(0,0,255),(5,150,step % 490,20)) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % 490)/490*100)), True, (255,0,0)) screen.blit(text1, (245, 150)) # 第三種 pygame.draw.rect(screen,(192,192,192),(5,200,length+10,20)) pygame.draw.rect(screen,(0,0,255),(5,200,step % length,20)) pygame.draw.circle(screen,(0,0,255),(step % length,210),10) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 200)) # 第四種 pygame.draw.rect(screen,(192,192,192),(5,250,length+10,20)) pygame.draw.rect(screen,(251,174,63),(5,250,step % length,20)) screen.blit(picture,(step%length,250)) font1 = pygame.font.Font(r’C:WindowsFontssimsun.ttc’, 16) text1 = font1.render(’%s %%’ % str(int((step % length)/length*100)), True, (255,0,0)) screen.blit(text1, (245, 250)) step += 1 clock.tick(60) pygame.display.flip()

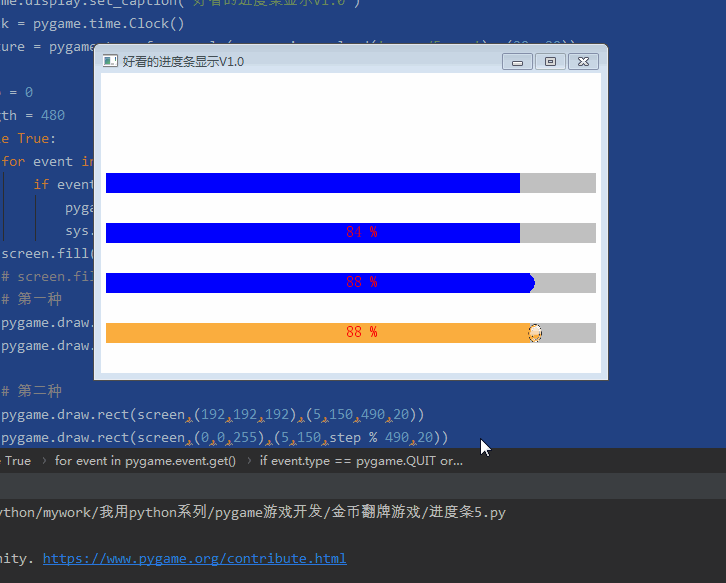

（二）運行效果

OK，寫完，本博文純屬科普貼，技術含量不高，入門級別，大家喜歡就好。而且里面代碼相對比較簡單，也沒有考慮優化，大家在實操過程中可以優化完善，并反饋給我一起進步。
