本來大型服務處理請求超時，限流，降級熔斷工作用hystrix,但是這個這個項目不再更新了，雖說它現在提供的版本不會影響到大多數開發者的使用，但是長遠考慮，被更換是一件必然的事，而且現在像resilience4j， Sentinel這樣的替代品出現，今天我們就看看使用zuul 與 Sentinel整合，實現降級與超時處理，其實網上有很多這樣的教程，這里我只是做一個自己的筆記而已

<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency><dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-zuul</artifactId></dependency><dependency> <groupId>com.alibaba.csp</groupId> <artifactId>sentinel-zuul-adapter</artifactId> <version>1.7.1</version></dependency>2、配置文件，其實Sentinel在這里沒什么配置

server: port: 6001spring: application: name: e-zuuleureka: instance: hostname: localhost lease-expiration-duration-in-seconds: 90 #表示服務端多長時間沒有接受到心跳信息后可以刪除自己 lease-renewal-interval-in-seconds: 30 #表示需要要向服務端發送信息，表示自己還活著 ip-address: true client: healthcheck: enabled: true #客戶端心跳檢測 service-url: defaultZone: http://${eureka.instance.hostname}:3001/eureka/zuul: add-proxy-headers: true LogFilter: pre: disable=true: routes: e-email: serviceId: e-email path: /email/** e-user: serviceId: e-user path: /user/**3、配置類, 其實配置類和后邊的降級回調處理類才是關鍵

而且配置類中幾個關于zuul與Sentinel的過濾器非常關鍵，這里要是不提供它們，將無法實現我們想要的功能，還有就是網關規則，可以選擇qps, 超時，線程等，setGrade(RuleConstant.DEGRADE_GRADE_RT)提供選擇不同的策略

package com.mjlf.ezuul.config;import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayFlowRule;import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayRuleManager;import com.alibaba.csp.sentinel.adapter.gateway.zuul.fallback.ZuulBlockFallbackManager;import com.alibaba.csp.sentinel.adapter.gateway.zuul.filters.SentinelZuulErrorFilter;import com.alibaba.csp.sentinel.adapter.gateway.zuul.filters.SentinelZuulPostFilter;import com.alibaba.csp.sentinel.adapter.gateway.zuul.filters.SentinelZuulPreFilter;import com.alibaba.csp.sentinel.slots.block.RuleConstant;import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRule;import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRuleManager;import com.netflix.zuul.ZuulFilter;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import javax.annotation.PostConstruct;import java.util.HashSet;import java.util.Set;@Configurationpublic class ZuulConfig { @Bean public ZuulFilter sentinelZuulPreFilter() {// We can also provider the filter order in the constructor.return new SentinelZuulPreFilter(); } @Bean public ZuulFilter sentinelZuulPostFilter() {return new SentinelZuulPostFilter(); } @Bean public ZuulFilter sentinelZuulErrorFilter() {return new SentinelZuulErrorFilter(); } @PostConstruct public void doInit() {// 注冊 FallbackProviderZuulBlockFallbackManager.registerProvider(new MyBlockFallbackProvider());initGatewayRules(); } /** * 配置限流規則 */ private void initGatewayRules() {Set<GatewayFlowRule> rules = new HashSet<>();rules.add(new GatewayFlowRule('e-user').setCount(3) // 限流閾值.setIntervalSec(1) // 統計時間窗口，單位是秒，默認是 1 秒);rules.add(new GatewayFlowRule('e-user').setGrade(RuleConstant.DEGRADE_GRADE_RT)//設置超時類型規則.setMaxQueueingTimeoutMs(500));GatewayRuleManager.loadRules(rules); }}4、回調處理類，當有請求被攔截到后，就會調用降級回調方法

// 自定義 FallbackProvider@Componentpublic class MyBlockFallbackProvider implements ZuulBlockFallbackProvider { private Logger logger = LoggerFactory.getLogger(DefaultBlockFallbackProvider.class); // you can define route as service level @Override public String getRoute() {return '*'; } @Override public BlockResponse fallbackResponse(String route, Throwable cause) {RecordLog.info(String.format('[Sentinel DefaultBlockFallbackProvider] Run fallback route: %s', route));if (cause instanceof BlockException) { return new BlockResponse(429, 'Sentinel block exception', route);} else { return new BlockResponse(500, 'System Error', route);} }}zuul集成Sentinel最新的網關流控組件一、說明

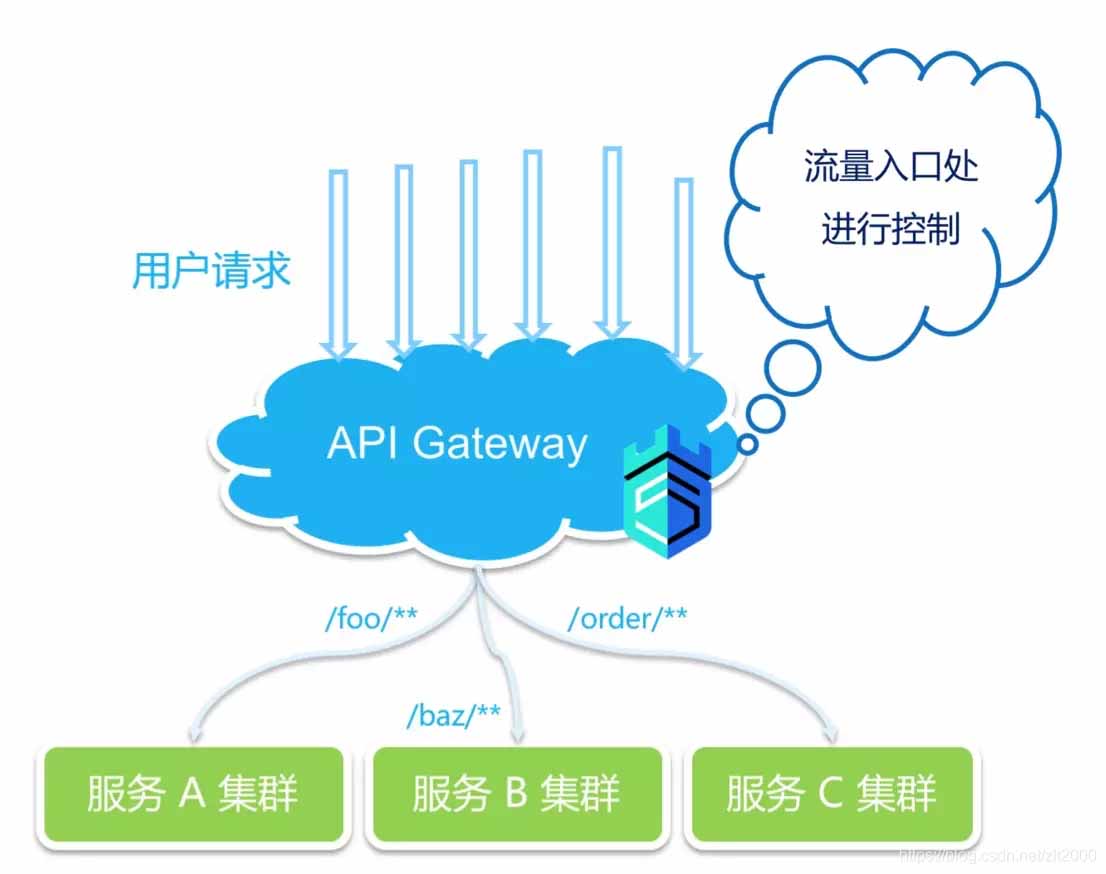

Sentinel 網關流控支持針對不同的路由和自定義的 API 分組進行流控，支持針對請求屬性（如 URL 參數，Client IP，Header 等）進行流控。

Sentinel 1.6.3 引入了網關流控控制臺的支持，用戶可以直接在 Sentinel 控制臺上查看 API Gateway 實時的 route 和自定義 API 分組監控，管理網關規則和 API 分組配置。

1. 網關添加sentinel相關的jar依賴

<dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId></dependency><dependency> <groupId>com.alibaba.csp</groupId> <artifactId>sentinel-datasource-nacos</artifactId></dependency><dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-alibaba-sentinel-gateway</artifactId></dependency>

2. 網關zuul的sentinel配置

spring: # sentinel動態配置規則 cloud: sentinel: zuul:enabled: trueorder: pre: 2000 post: 500 error: -100 filter:enabled: false datasource:# 限流ds1: nacos: server-addr: ${zlt.nacos.server-addr} dataId: ${spring.application.name}-sentinel-gw-flow groupId: DEFAULT_GROUP rule-type: gw-flow# api分組ds2: nacos: server-addr: ${zlt.nacos.server-addr} dataId: ${spring.application.name}-sentinel-gw-api-group groupId: DEFAULT_GROUP rule-type: gw-api-group

綁定gw-flow(限流)和gw-api-group(api分組)的規則數據源為nacos并指定nacos上對應的dataId和groupId

3. nacos規則配置

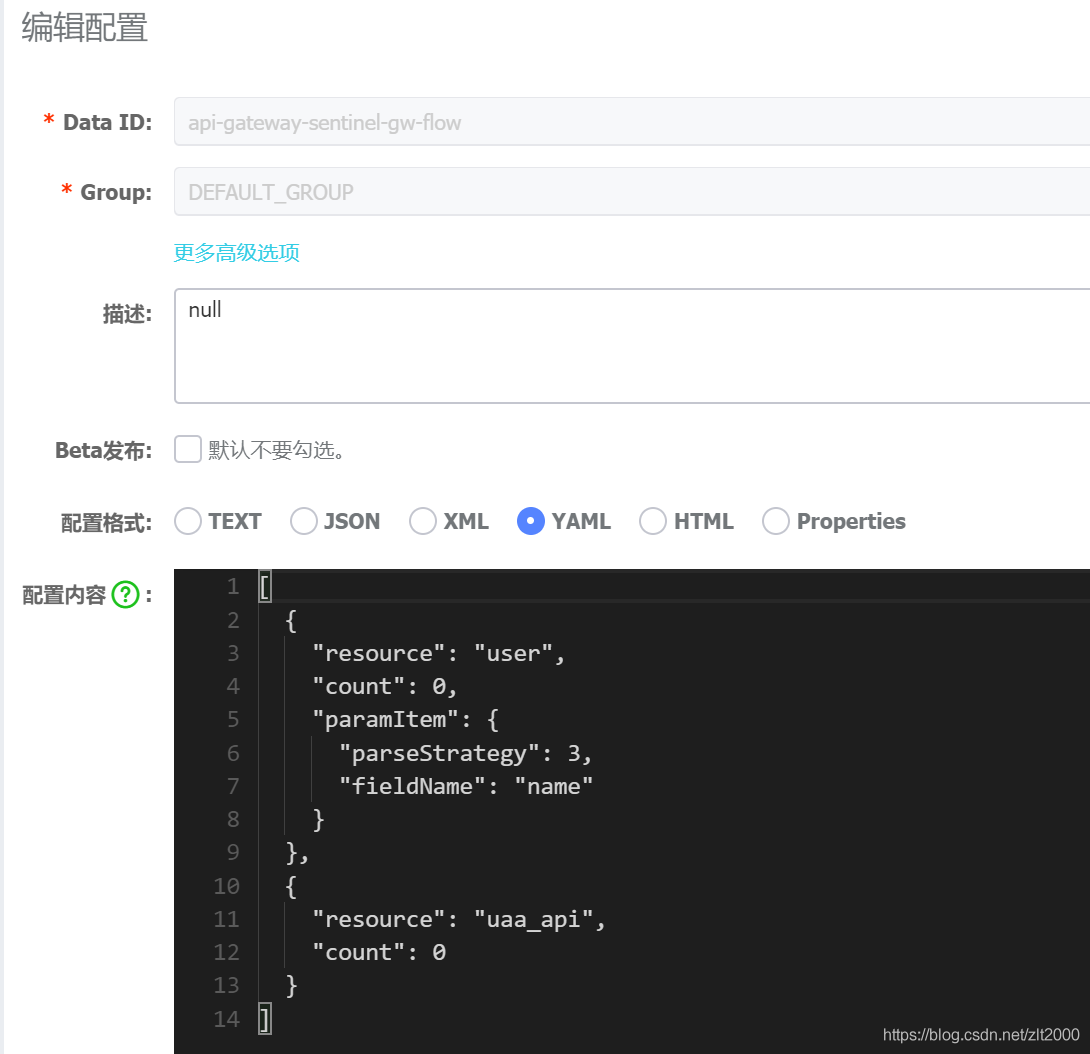

3.1. 限流配置gw-flow

Data ID：api-gateway-sentinel-gw-flow

Group：DEFAULT_GROUP

配置內容：

[ { 'resource': 'user', 'count': 0, 'paramItem': { 'parseStrategy': 3, 'fieldName': 'name' } }, { 'resource': 'uaa_api', 'count': 0 }]

規則1：所有user的請求只要參數帶有name的都攔截(qps=0)，user為zuul路由配置上的routeId規則2：api分組為uaa_api的所有請求都攔截(qps=0)

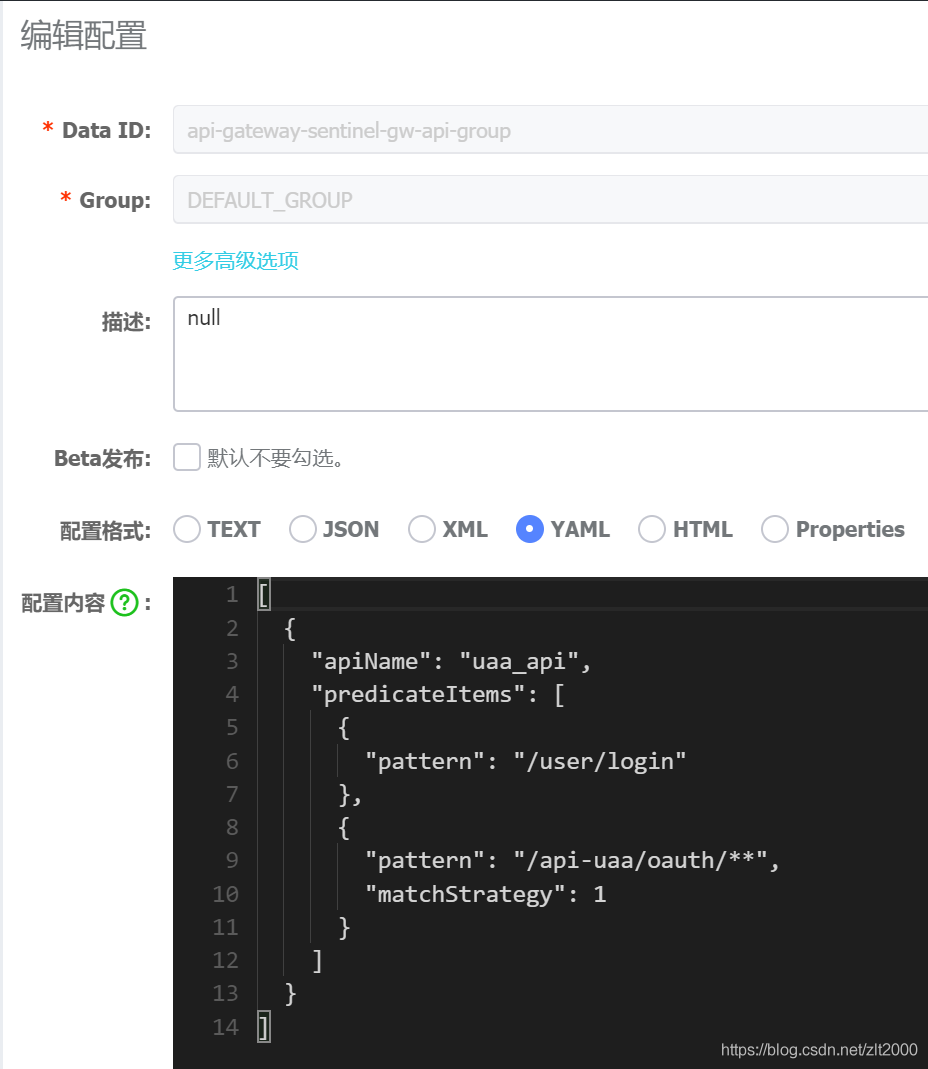

3.2. api分組配置gw-api-group

Data ID：api-gateway-sentinel-gw-api-group

Group：DEFAULT_GROUP

配置內容：

[ { 'apiName': 'uaa_api', 'predicateItems': [ {'pattern': '/user/login' }, {'pattern': '/api-uaa/oauth/**','matchStrategy': 1 } ] }]

上面配置意思為滿足規則的api都統一分組為uaa_api分組規則1：精準匹配/user/login分組規則2：前綴匹配/api-uaa/oauth/**

4. 網關zuul啟動參數

需要在接入端原有啟動參數的基礎上添加-Dcsp.sentinel.app.type=1啟動以將您的服務標記為 API Gateway，在接入控制臺時您的服務會自動注冊為網關類型，然后您即可在控制臺配置網關規則和 API 分組，例如：

java -Dcsp.sentinel.app.type=1 -jar zuul-gateway.jar三、sentinel控制臺管理

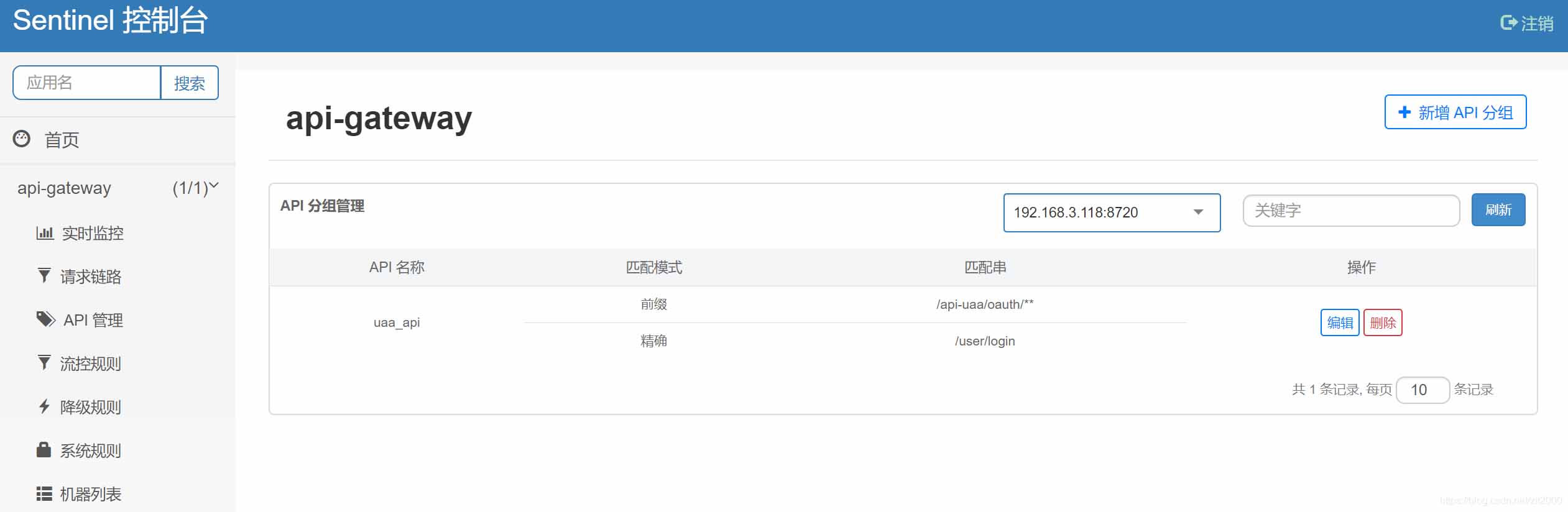

API管理(分組)

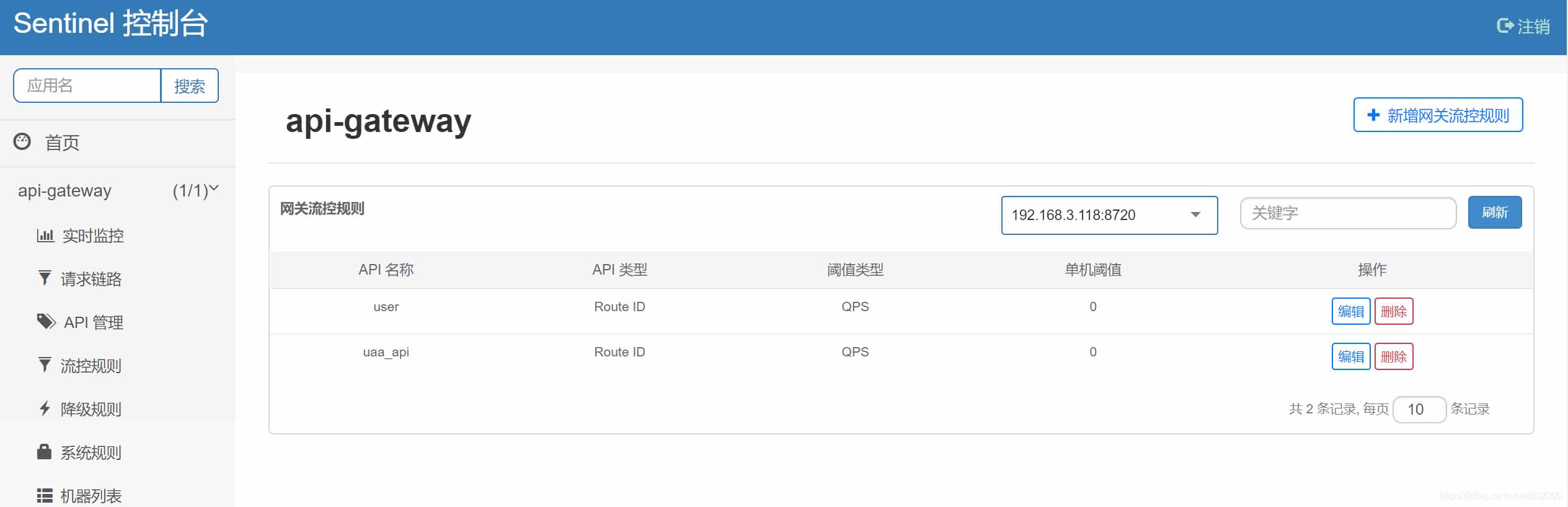

網關流控規則

1. 測試限流規則1

所有user的請求只要參數帶有name的都攔截(qps=0)

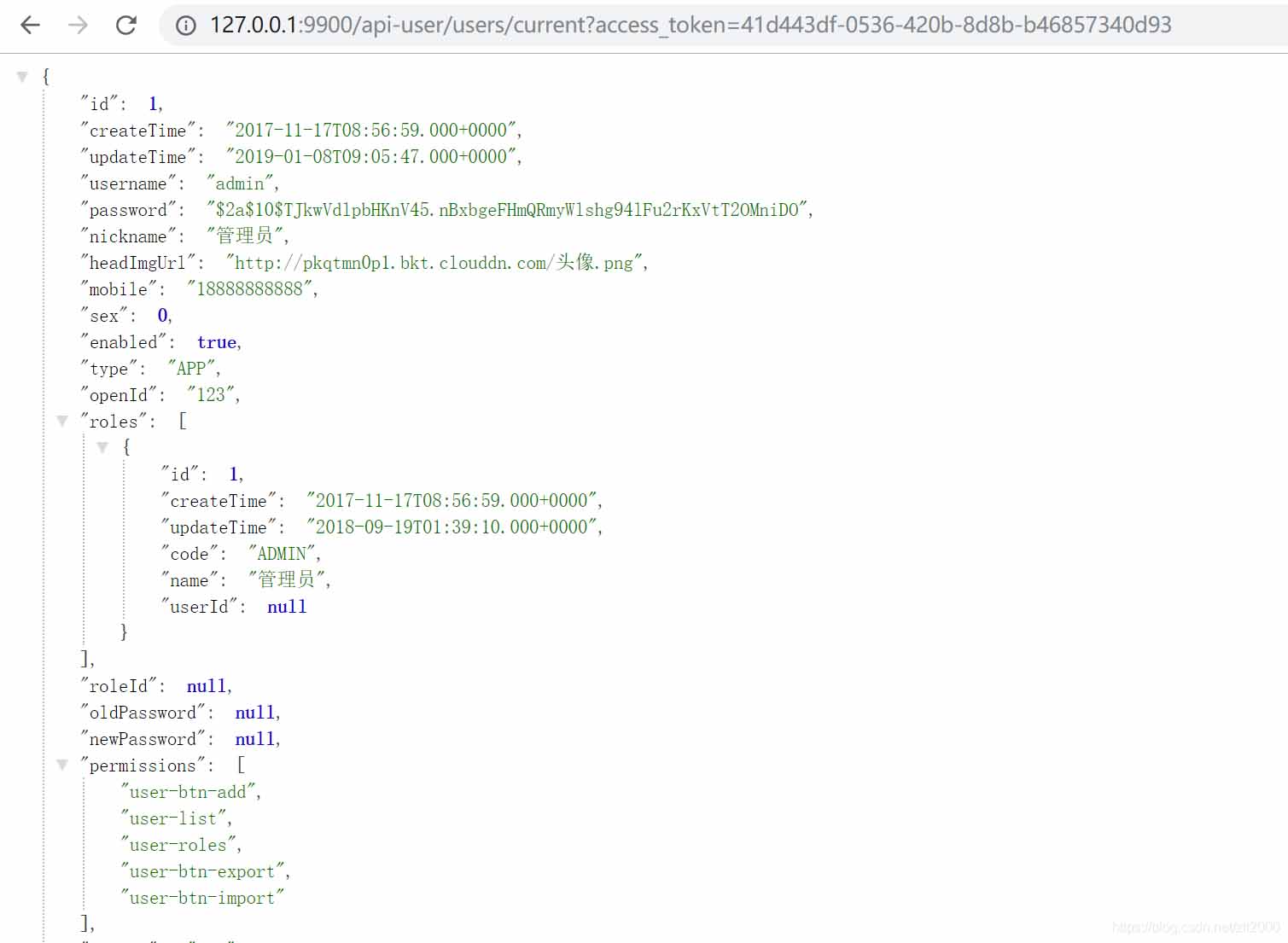

不加name參數，可以訪問api

后面加上name參數，請求被攔截

2. 測試限流規則2

api分組為uaa_api的所有請求都攔截(qps=0)

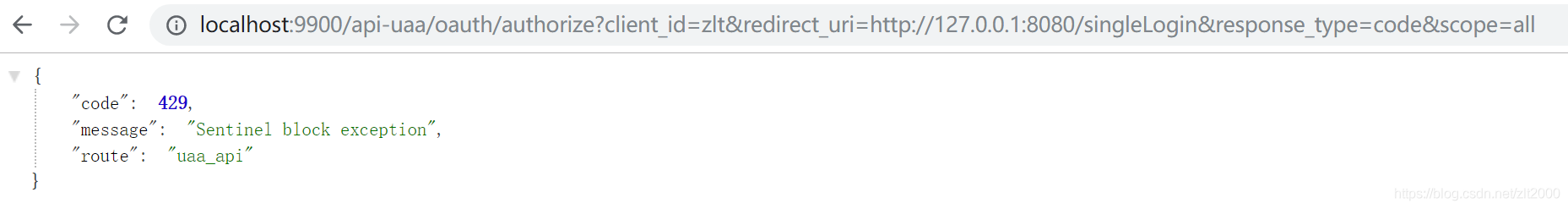

前綴匹配/api-uaa/oauth/**

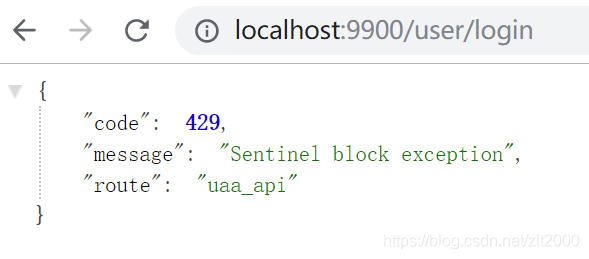

精準匹配/user/login
