WebMvcAutoConfiguration

添加資源映射：

public void addResourceHandlers(ResourceHandlerRegistry registry) { if (!this.resourceProperties.isAddMappings()) {logger.debug('Default resource handling disabled'); } else {Duration cachePeriod = this.resourceProperties.getCache().getPeriod();CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl();if (!registry.hasMappingForPattern('/webjars/**')) { this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{'/webjars/**'}).addResourceLocations(new String[]{'classpath:/META-INF/resources/webjars/'}).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));}String staticPathPattern = this.mvcProperties.getStaticPathPattern();if (!registry.hasMappingForPattern(staticPathPattern)) { this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{staticPathPattern}).addResourceLocations(WebMvcAutoConfiguration.getResourceLocations(this.resourceProperties.getStaticLocations())).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));} } }

所有'/webjars/**'路徑 ， 都去類路徑下 classpath: /META-INF/resources/webjars/ 找資源， 所以就是

http://localhost:8080/webjars/jquery/3.5.1/jquery.js

能訪問

/META-INF/resources/webjars/jquery/3.5.1/jquery.js 路徑的文件

1) webjars： 以jar包的方式引入靜態資源

什么是webjar?

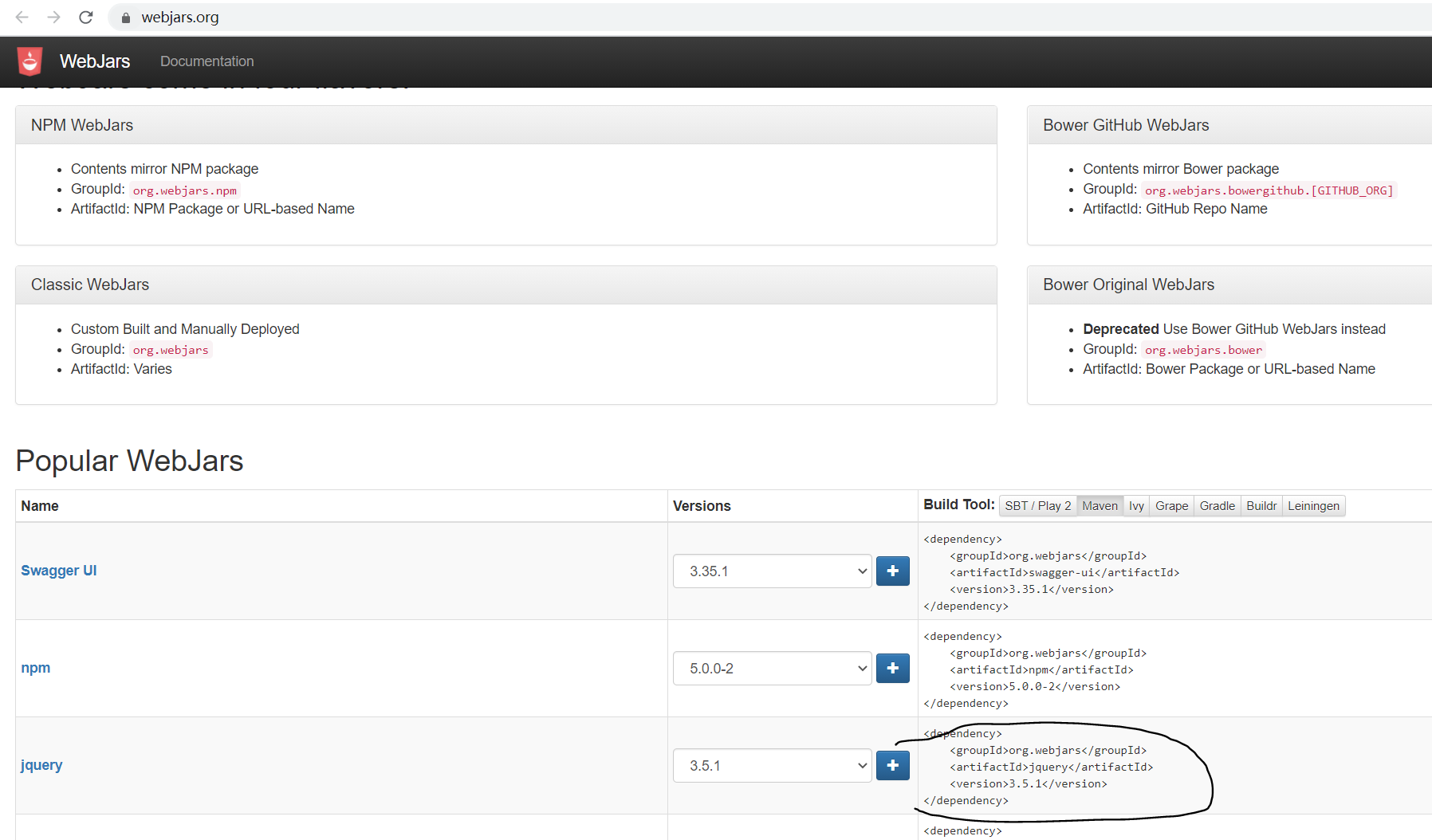

搜索webjar， 可以將jquery用pom引入：

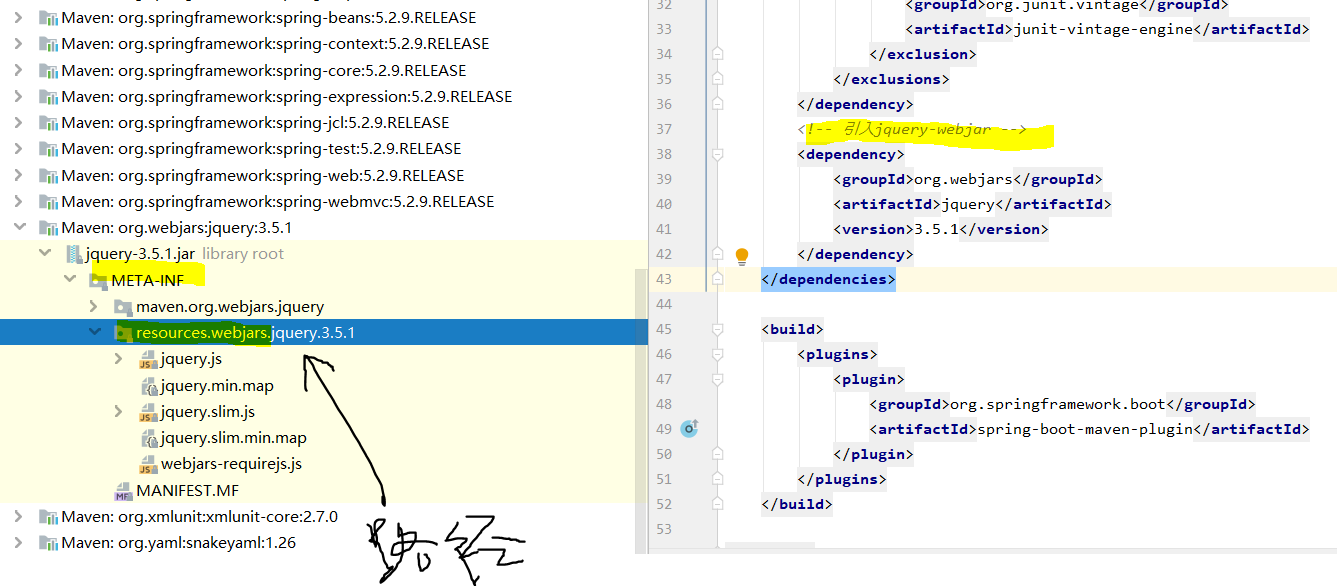

引入， 正好對應這個映射：

結果是的：

2) springboot對靜態資源的映射規則：

看代碼：

還是

WebMvcAutoConfiguration的這個方法

public void addResourceHandlers(ResourceHandlerRegistry registry) { if (!this.resourceProperties.isAddMappings()) { logger.debug('Default resource handling disabled'); } else { Duration cachePeriod = this.resourceProperties.getCache().getPeriod(); CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl(); if (!registry.hasMappingForPattern('/webjars/**')) { this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{'/webjars/**'}).addResourceLocations(new String[]{'classpath:/META-INF/resources/webjars/'}).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl)); } String staticPathPattern = this.mvcProperties.getStaticPathPattern(); if (!registry.hasMappingForPattern(staticPathPattern)) { this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{staticPathPattern}).addResourceLocations(WebMvcAutoConfiguration.getResourceLocations(this.resourceProperties.getStaticLocations())).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl)); } }}

進去：

WebMvcProperties

private String staticPathPattern; private final WebMvcProperties.Async async; private final WebMvcProperties.Servlet servlet; private final WebMvcProperties.View view; private final WebMvcProperties.Contentnegotiation contentnegotiation; private final WebMvcProperties.Pathmatch pathmatch; public WebMvcProperties() { this.localeResolver = WebMvcProperties.LocaleResolver.ACCEPT_HEADER; this.format = new WebMvcProperties.Format(); this.dispatchTraceRequest = false; this.dispatchOptionsRequest = true; this.ignoreDefaultModelOnRedirect = true; this.publishRequestHandledEvents = true; this.throwExceptionIfNoHandlerFound = false; this.logResolvedException = false; this.staticPathPattern = '/**'; this.async = new WebMvcProperties.Async(); this.servlet = new WebMvcProperties.Servlet(); this.view = new WebMvcProperties.View(); this.contentnegotiation = new WebMvcProperties.Contentnegotiation(); this.pathmatch = new WebMvcProperties.Pathmatch(); }

addResourceLocations(WebMvcAutoConfiguration.getResourceLocations(this.resourceProperties.getStaticLocations())) 這里添加了資源的位置

public class ResourceProperties { private static final String[] CLASSPATH_RESOURCE_LOCATIONS = new String[]{'classpath:/META-INF/resources/', 'classpath:/resources/', 'classpath:/static/', 'classpath:/public/'}; private String[] staticLocations; private boolean addMappings; private final ResourceProperties.Chain chain; private final ResourceProperties.Cache cache; public ResourceProperties() { this.staticLocations = CLASSPATH_RESOURCE_LOCATIONS; this.addMappings = true; this.chain = new ResourceProperties.Chain(); this.cache = new ResourceProperties.Cache(); }

'/**'訪問當前項目的任何資源， （靜態資源的文件夾） ，如果沒人處理，會默認去以下幾個文件路徑下找[/code]復制代碼 代碼如下:// 靜態資源文件夾， 這幾個都可以存放靜態資源：

classpath:/META-INF/resources/classpath:/resources/'classpath:/static/'classpath:/public/

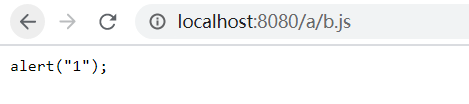

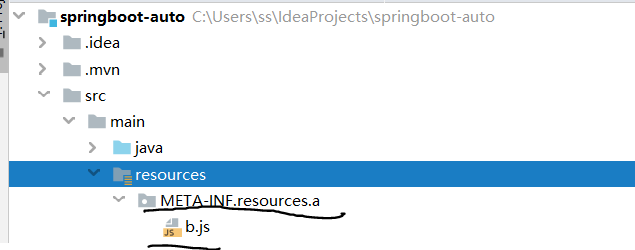

例如 localhost:8080/a/b.js ， 可以到 /META-INF/resources/a/b.js 找

或者：

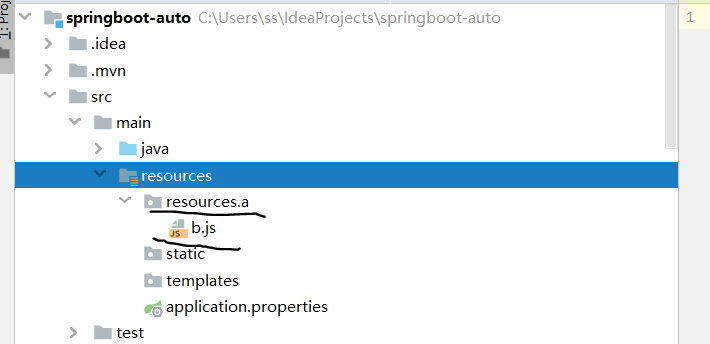

/resources/a/b.js找：

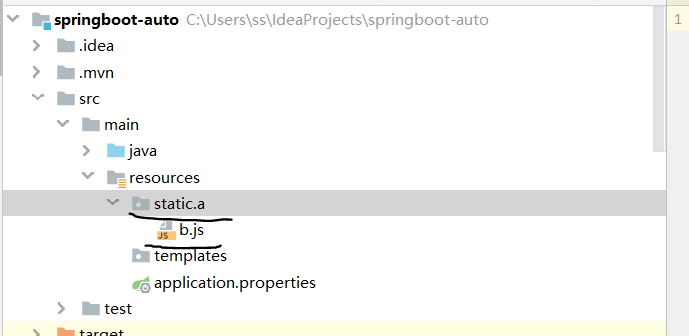

或者類路徑下/static/a/b.js找：

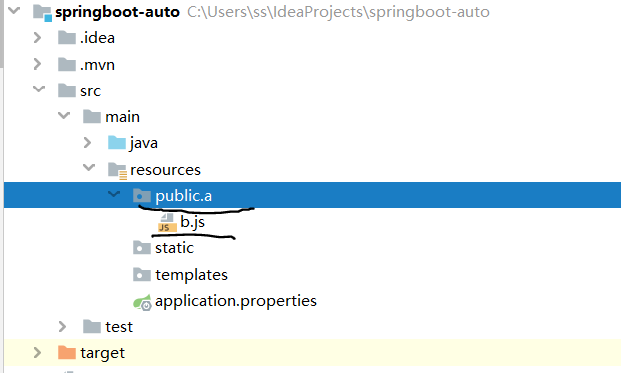

或者/public/a/b.js下找

3）歡迎頁面： 靜態資源文件夾下的所有index.html頁面： 被 /**映射

http://localhost:8080/ 會到以上靜態資源文件夾中找index.html頁面

源碼有變化，我沒明白回頭再看

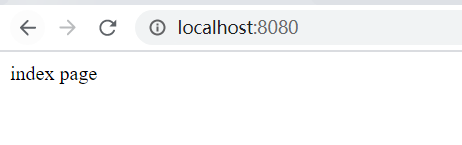

結果：

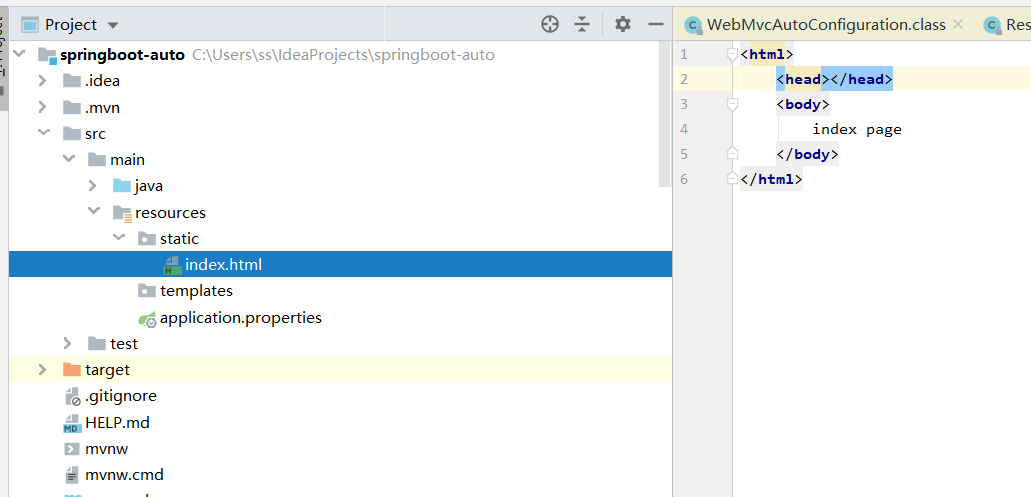

路徑：
