前言

Android開發中，常常自定義View實現自己想要的效果，當然自定義View也是Android開發中比較難的部分，涉及到的知識有Canvas（畫布），Paint（畫筆）等，自定義控件分為三種：一是直接繼承自View，完全的自定義；二是在原有控件的基礎上進行改造，達到自己想要的效果；還有一種就是自定義組合控件，將已有的控件根據自己的需要進行組合實現的效果。本人對自定義View也是一知半解，簡單記錄下自己學習自定義View（繼承自View）的過程，方便日后翻閱。

使用技術

1、繼承View2、Canvas3、paint

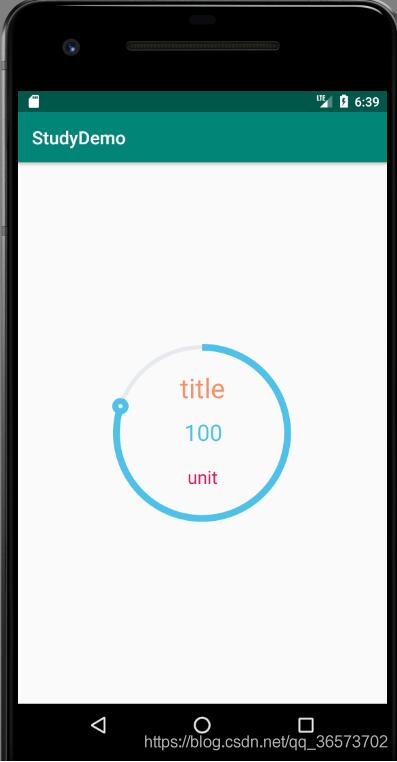

效果圖:

1.分析組件

自定義view首先我們要分析組件是由幾部分組成，然后在依次順序使用canvas畫出組件，首先可以看出該組件由一個背景外部圓，一個圓弧，以及圓弧端點是由兩個圓組成，內部是三個文字。分析完畢，我們就可以先定義組件屬性了

2.組件屬性

1.在values目錄下新建attrs.xml文件，用來編寫組件屬性

<?xml version='1.0' encoding='utf-8'?><resources> <declare-styleable name='ProgressView'> <attr name='title' format='string'/> <attr name='num' format='string'/> <attr name='unit' format='string'/> <attr name='titleTextsize' format='dimension'/> <attr name='numTextsize' format='dimension'/> <attr name='unitTextsize' format='dimension'/> <attr name='titleTextColor' format='color'/> <attr name='numTextColor' format='color'/> <attr name='unitTextColor' format='color'/> <attr name='backCircleWidth' format='dimension'/> <attr name='outerCircleWidth' format='dimension'/> <attr name='backCircleColor' format='color'/> <attr name='outerCircleColor' format='color'/> <attr name='endCircleWidth' format='dimension'/> <attr name='edgeDistance' format='dimension'/> <attr name='endCircleColor' format='color'/> <attr name='currentPercent' format='float'/> </declare-styleable></resources>

2.自定義view繼承View并實現構造方法

public class ProgressView extends View {/** * 在java代碼里new的時候會用到 * @param context */ public ProgressView(Context context) { super(context); init(context, null); } /** * 在xml布局文件中使用時自動調用 * @param context */ public ProgressView(Context context, @Nullable AttributeSet attrs) { super(context, attrs); init(context,attrs); } /** * 不會自動調用，如果有默認style時，在第二個構造函數中調用 * @param context * @param attrs * @param defStyleAttr */ public ProgressView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); }}

2.初始化屬性

/** * 初始化屬性 * @param context * @param attrs */ private void init(Context context,AttributeSet attrs){ this.mContext = context; if(attrs!=null){ TypedArray array = context.obtainStyledAttributes(attrs, R.styleable.ProgressView); title = array.getString(R.styleable.ProgressView_title); num = array.getString(R.styleable.ProgressView_num); unit = array.getString(R.styleable.ProgressView_unit); titleTextsize = array.getDimension(R.styleable.ProgressView_titleTextsize,24); numTextsize = array.getDimension(R.styleable.ProgressView_numTextsize,48); unitTextsize = array.getDimension(R.styleable.ProgressView_unitTextsize,24); titleTextColor = array.getColor(R.styleable.ProgressView_titleTextColor, Color.parseColor('#656d78')); numTextColor = array.getColor(R.styleable.ProgressView_numTextColor, Color.parseColor('#4fc1e9')); unitTextColor = array.getColor(R.styleable.ProgressView_unitTextColor, Color.parseColor('#4fc1e9')); backCircleWidth = array.getDimension(R.styleable.ProgressView_backCircleWidth, 12); outerCircleWidth = array.getDimension(R.styleable.ProgressView_outerCircleWidth, 20); backCircleColor = array.getColor(R.styleable.ProgressView_backCircleColor, Color.parseColor('#e6e9ed')); outerCircleColor = array.getColor(R.styleable.ProgressView_outerCircleColor, Color.parseColor('#4fc1e9')); endCircleWidth = array.getDimension(R.styleable.ProgressView_endCircleWidth,24); endCircleColor = array.getColor(R.styleable.ProgressView_endCircleColor, Color.parseColor('#4fc1e9')); edgeDistance = array.getDimension(R.styleable.ProgressView_edgeDistance, 12); currentPercent = array.getFloat(R.styleable.ProgressView_currentPercent, 0); if(currentPercent>1||currentPercent<0){ currentPercent = currentPercent>1?1:0; } //初始化畫筆 backCirclePaint = new Paint(); backCirclePaint.setAntiAlias(true); backCirclePaint.setStrokeWidth(backCircleWidth); backCirclePaint.setColor(backCircleColor); backCirclePaint.setStyle(Paint.Style.STROKE); outerCirclePaint = new Paint(); outerCirclePaint.setAntiAlias(true); outerCirclePaint.setStrokeWidth(outerCircleWidth); outerCirclePaint.setColor(outerCircleColor); outerCirclePaint.setStyle(Paint.Style.STROKE); endBigCirclePaint = new Paint(); endBigCirclePaint.setAntiAlias(true); endBigCirclePaint.setStrokeWidth(endCircleWidth); endBigCirclePaint.setColor(endCircleColor); endBigCirclePaint.setStyle(Paint.Style.STROKE); endSmallCirclePaint = new Paint(); endSmallCirclePaint.setAntiAlias(true); endSmallCirclePaint.setColor(Color.WHITE); endSmallCirclePaint.setStyle(Paint.Style.FILL); titlePaint = new Paint(); //通過設置Flag來應用抗鋸齒效果 titlePaint.setFlags(Paint.ANTI_ALIAS_FLAG); titlePaint.setAntiAlias(true); //設置文字居中 //titlePaint.setTextAlign(Paint.Align.CENTER); titlePaint.setColor(titleTextColor); titlePaint.setTextSize(titleTextsize); numPaint = new Paint(); numPaint.setAntiAlias(true); numPaint.setFlags(Paint.ANTI_ALIAS_FLAG); //設置文字居中 //numPaint.setTextAlign(Paint.Align.CENTER); numPaint.setColor(numTextColor); numPaint.setTextSize(numTextsize); unitPaint = new Paint(); unitPaint.setAntiAlias(true); unitPaint.setFlags(Paint.ANTI_ALIAS_FLAG); //unitPaint.setTextAlign(Paint.Align.CENTER); unitPaint.setColor(unitTextColor); unitPaint.setTextSize(unitTextsize); //釋放 array.recycle(); }}

3.獲取組件高度寬度，重寫onMeasure方法

@Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { super.onMeasure(widthMeasureSpec, heightMeasureSpec); ///獲取總寬度,是包含padding值 //處理WAP_CONTENT int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec); width = MeasureSpec.getSize(widthMeasureSpec); int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec); height = MeasureSpec.getSize(heightMeasureSpec); if (widthSpecMode == MeasureSpec.AT_MOST && heightSpecMode == MeasureSpec.AT_MOST) { //默認大小 200*200 setMeasuredDimension(200,200); }else if (widthSpecMode == MeasureSpec.AT_MOST) { setMeasuredDimension(height, height); }else if (heightSpecMode == MeasureSpec.AT_MOST) { setMeasuredDimension(width, width); } }

4.重寫onDraw()繪制組件各部分

@Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); //圓心 int centerX = width / 2; int centerY = height / 2; //計算半徑 float radius = centerX - edgeDistance; //畫背景圓 drawBackCircle(canvas,centerX,centerY,radius); //繪制圓弧進度 drawProgress(canvas,centerX,centerY); //繪制標題 drawText(canvas); }```

###### 4.1繪制背景圓

```java /** * 繪制背景圓 * @param canvas * @param x 圓心位置x * @param y 圓心位置y * @param radius 半徑 */ private void drawBackCircle(Canvas canvas,int x,int y,float radius){ canvas.drawCircle(x,y,radius,backCirclePaint); }

4.2 繪制圓弧進度

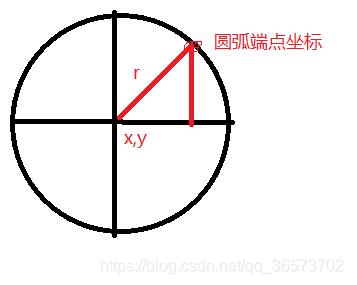

1.注意:圓弧上端點進度為0或者100不顯示，此外端點的位置使用sin和cos來確定坐標；

/** * 繪制圓弧進度 */ private void drawProgress(Canvas canvas,int x,int y){ //圓弧的范圍 RectF rectF = new RectF(edgeDistance, edgeDistance, width - edgeDistance, height - edgeDistance); //定義的圓弧的形狀和大小的范圍 // 置圓弧是從哪個角度來順時針繪畫的 //設置圓弧掃過的角度 //設置我們的圓弧在繪畫的時候，是否經過圓形 這里不需要 //畫筆 canvas.drawArc(rectF, -90, 360 * currentPercent, false, outerCirclePaint); //繪制端圓 //進度在0~100%的時候才會畫終點小圓，可以自由改動 if(currentPercent>0&&currentPercent<1){ //繪制外層大圓 canvas.drawCircle(x + rectF.width() / 2 * (float) Math.sin(360 * currentPercent * Math.PI / 180), y - rectF.width() / 2 * (float) Math.cos(360 * currentPercent * Math.PI / 180), endCircleWidth / 2, endBigCirclePaint); //繪制內層圓點 canvas.drawCircle(x + rectF.width() / 2 * (float) Math.sin(360 * currentPercent * Math.PI / 180), y - rectF.width() / 2 * (float) Math.cos(360 * currentPercent * Math.PI / 180), endCircleWidth / 4, endSmallCirclePaint); } }

4.3 繪制文字

/** * 繪制標題 * @param canvas */ private void drawText(Canvas canvas) { Rect textRect = new Rect(); //返回的則是當前文本所需要的最小寬度，也就是整個文本外切矩形的寬度 titlePaint.getTextBounds(title, 0, title.length(), textRect);//25 50 175 //高度平分四部分 float h = height/ 4; //文字居中 canvas.drawText(title, width / 2 - textRect.width() / 2, h + textRect.height() / 2, titlePaint); numPaint.getTextBounds(num, 0, num.length(), textRect); canvas.drawText(num, width / 2 - textRect.width() / 2, h*2 + textRect.height() / 2, numPaint); unitPaint.getTextBounds(unit, 0, unit.length(), textRect); canvas.drawText(unit, width / 2 - textRect.width() / 2, 3*h + textRect.height() / 2, unitPaint); }

4.4提供外部修改進度方法以及進度過度

/** * 設置進度 */ public void setProgress(final float progress){ new Thread(new Runnable() { @Override public void run() { for(int i=0;i<=progress*100;i++){ Message msg = new Message(); msg.what = 1; msg.obj = i; try { Thread.sleep(20); handler.sendMessage(msg); } catch (InterruptedException e) { e.printStackTrace(); } } } }).start(); } private Handler handler = new Handler(new Handler.Callback(){ @Override public boolean handleMessage(@NonNull Message msg) { if(msg.what==1){ currentPercent = ((float)Integer.valueOf(msg.obj+'')/100); System.out.println('更新'+currentPercent); invalidate(); } return false; } });

總結：使用Canvas的drawArc方法繪制圓弧及drawText繪制文本信息等；

github地址:項目地址
